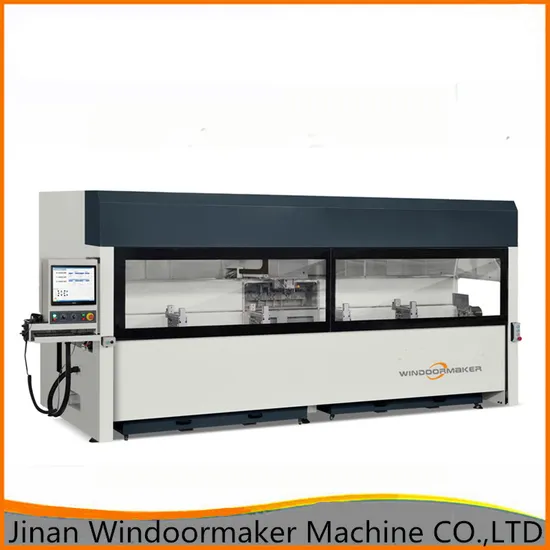

Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre

Product Description

Product Description
Specification:
1.Suitable for milling, drilling, cutting and other processing processes of aluminum profile.
2.The table rotates at any angle of +90°~-90°, and multi-surface machining can be realized in one clamping.
3.Equipped with CAM software, the operation interface of the equipment is simple and intuitive.
4.Imported automatic tool change spindle, with 8-station tools magazine, can realize fast automatic tool change.
5.Double-zone design of workbench, clamping position automatic detection, automatic arrangement; High efficiency.
6.Fully closed design, equipped with Automatic Chip Conveyor, more safe to use, environmental protection.
7.The machine has QR code reader and Industrial PC, which can access to MES production management system and realize the automation of production.
8.Adopt high-precision linear guide rail, ball screw, rack and pinion and imported servo motor to ensure smooth movement and high positioning and processing accuracy.
Technical Parameter:

Power supply	Made to order
Spindle power	4.5KW
Total power	7.5KW
Rotary speed	0-18000r/min
Operation air pressure	0.6~0.8Mpa
Tools magazine	8 tools
Worktable Height	1000mm
Working range of X/Y/Z	X=3500mm,Y=200mm,Z=200mm 3850*200*200mm
axis feeding speed of X/Y/Z/A	X=0-60m/min,Y=0-30 m/min, Z=0-30 m/min,A=18r/min
Servo motor of X/Y/Z/A	0.75KW/0.75KW/0.4KW/0.75kw
Positioning/repositioning accuracy	±0.15mm/±0.05mm
Roughness	Ra6.3um
Specification of tool magazine	ISO30
Dimension	5100×2100×2250mm(LxWxH)
Weight	4000kg

Spare parts details

Machine name	Aluminum CNC Machining Center F our Axis WM-CNC-3500
Spare Parts Name	Brand(original)	Remarks
Low voltage electrical parts	Siemens(Germany)	AC Contactor/Circuit protector /Phase sequence protector
Switch button Electrical Parts	Siemens(Germany)
Spindle	HSD(Italy) HSD
Magnetic valve	Airtac(Taiwan)
Cylinder	Airtac(Taiwan)
PU Air Tube PU	SAMTAM(Japan)
Square Guide Rail	ABBA/HIWIN (Taiwan)
Reducer	Sejin(Korea)/APEX(Taiwan)
Pneumatic components	Airtac(Taiwan)
Servo Motor	YASKAWA(Japan)
Driver	YASKAWA(Japan)
CNC System	PA(Germany) PA
Inverter	Delta(Taiwan)
