Aluminium Foil Sheet Cutting Machine

Product Description

Roll to Sheet Cutting Machine

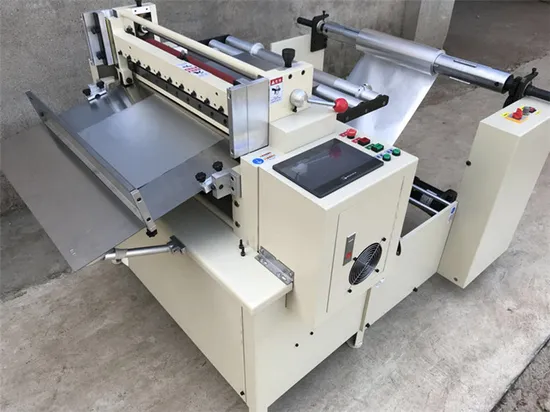

Machine photo

FUNCTIONAL CHARACTERSTICS
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting, equipped with automatic unwinding system and air shaft, which will be easy to load and unload. With photoelectric system to searching the marks , and with the electric static eliminator after cutting the sheets

Purpose
Sizing cutting for all kind paper, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.
To cut material from rolls to sheets

Main Technical Parameter

Model	LT360B, LT500B, LT600B, LT800B, LT1000B
Cutting Width (mm)	360, 500, 600, 800, 1000, customized
Cutting Length (mm)	0.1~9999.9mm
Cutting thickness (mm)	0.5-20mm
Cutting speed	0-300pcs/min
Cutting precision	0.02mm
Motor	2 servo motors
Power	1.5KW
Voltage	220V/380V, customized
N.W./GW.	260/280KG
Measurement	960x1020x1150mm

Features 1. The max width: 360, 500, 600, 800, 1000, customized
2. Tolerence: 0.05mm, Precision: 0.02mm
3. Material thickness: 0.5mm-20mm
4. Cutting speed:200 cut/min;
5. Both kiss-cut and complete cut are available;
6. Complete cut is for standard machine, and kiss-cut is an option;
7. A conbination of PLC and servo motor.
8. Eye mark device for optional
9. An air shaft as the loading shaft;
10. Two accessories, static eliminator and conveyor belt, for you to choose
11. Automatic unwinding function;
12. Cutting length is accurate;
13. Operation is easy;
14. Waste rate is low;
15. Diverse functions satisfy your various requirements;
16. We offer superior-quality products and best service for you;
17. As a high-tech manufacturer, we possess veteran engineers and professional sales team;
After-service
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Electric Box
Package
