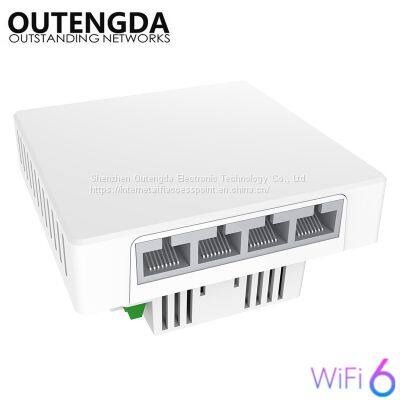

802.11ax Wifi6 In Wall Access Point With Gigabit Lan Support Poe Pwoer Indoor Soho Hotel Enterprise Multi-Port Embedded Router
Product Details
Product Details
Product Description
Product Description| Chipset | MT7621DAT+MT7905DN+MT7975DN |
| Standard | 802.11ax/ac/b/g/n |
| Flash | SPI NOR 16MB |
| Memory | 128MB |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| 2.4G Wi-Fi standard | 802.11b/g/n/ac/ax |
| 5.8G Frequency | 5150~5850MHz |
| 5.8G Wi-Fi Standard | 802.11 a/n/ac/ax |
| Interface | 1 * 10/100 /1000 RJ45 WAN Port |
| 4 * 10/100 /1000 RJ45 LAN Ports (Optional: 3*10/ 100/ 1000 RJ45 LAN, 1* RJ11) | |
| 1 * Reset button, press 10 seconds to revert to default setting | |
| Antenna | 2.4G: 2dBi; 5G: 4dBi |
| Data Rate | 1800Mbps |
| End Users | 120+ |
| RF Power | 2.4G≤20dBm; 5.8G≤19dBm |
| PoE | 48V (IEEE 802.3af/at) |
| LED light | Sys |
| Power Consumption | ≤ 14W |
| ESD | ±6KV |
| Size | 86mmX86mmX45mm |
Firmware Specification
| Working Mode | Gateway, AP |
| Wireless Functions | Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4. |
| Support SSID hidden | |
| Support seamless roaming, 802.11kvr standard. | |
| Support 5G Prior for a faster Ethernet. | |
| Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, | |
| Support MAC filter | |
| Support Wi-Fi time on/off to save energy | |
| Support client isolation to improve the wireless stability | |
| Support RF power adjustable, adjust the RF power based on environment. | |
| Support user quantity limited, Max 64 users to access each band. | |
| Networking Function | VLAN settings |
| Cloud access support in gateway mode | |
| Device Management | Back-up the configuration |
| Restore the configuration | |
| Reset to factory default | |
| Reboot the device: including time reboot or reboot immediately | |
| Admin management password modify | |
| Firmware upgrade | |
| System log | |
| Support firmware GUI web management, AC controller management, remote management and cloud management | |
| Protocols | IPv4 |
