Basic Customization New Customized Factory Price Yx830 PU PIR Rockwool Metal Insulated EPS Sandwich Panel Machine with ISO90001/CE

Basic Customization New Customized Factory Price Yx830 PU PIR Rockwool Metal Insulated EPS Sandwich Panel Machine with ISO90001/CE

US$72,500.00-82,500.00 1 Set (MOQ)

Basic Info.

Model NO.

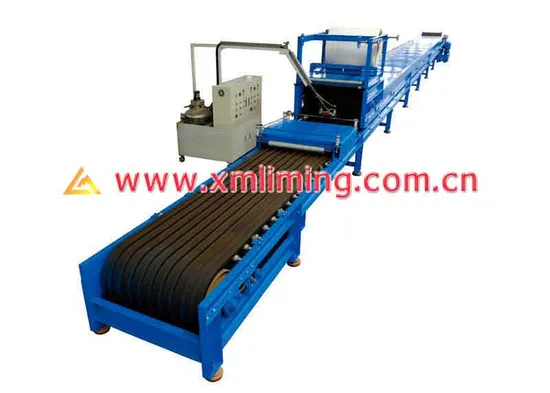

YX830 PU Sandwich Panel Production Line
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Floor
Transmission Method
Motor Drive
Thickness
2.0-3.0mm
Transport Package
40gp′*1+20gp′*1
Specification
800KG
Trademark
LIMING MACHINERY
Origin
Xiamen
Production Capacity
600sets/Year

Packaging & Delivery

Package Size
7000.00cm * 1500.00cm * 1500.00cm
Package Gross Weight
14000.000kg

Product Description


Product Description

1. The general machine parameter
Suitable roll forming material
Color steel sheet or galvanized steel sheet
Thickness
2.0-3.0mm
Frame design
Wall-plate-frame-design /Strong-stand-frame-design
Roll stages
17stages
Material of forming roller
1. 45# steel, CNC lathes, Hard Chrome Coated
2. 40Cr, heat treatment, nitrided treatment
Shafts Diameter
Φ75/95mm
Main motor power
18.5KWwith reducer
Max. Line speed of roll former
8-10m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power
22KW
Material of cutting blade
Cr12, hear treatment
Electric Standard
380V /50Hz/3PH or as the customer's requirements
Machine Dimensions
9840mm×2030mm×1130mm
Major Color of Machine Painted
RAL 5015 (Blue) or as per customer's requirements
2. PLC Control system
PLC
Siemens brand (ABB brand is available if required)
Touch Screen
Siemens brand (ABB brand is available if required)
Inverter
Schneider brand (ABB brand is available if required)
Encoder
Omron brand
3.Product rack
Description
un-powered, 4 meters length
Option:
Pre-Level Device
Hydraulic Punching & Cutting M/C
CE certificate
Pl refer to the attached pictures for details


After-Sale Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free.
The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.

Terms Of Trade

Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
