Ck6150 CNC Slant Bed Roller Turning Lathe with Good Price and Reliable Quality

Product Description

Product Description
CK6150 CNC lathe is a horizontal CNC lathe with high speed, high precision and high reliability. It is widely using in the processing process for shell parts, disc parts and all kinds of complex parts.The machine is equipped with automatic lubrication system, cooling system, and a fully closed horizontal protective cover.The integral body structure enhances the whole rigidity,to ensure the heavy load capacity during processing.Adopt flat bed structure, equipped with high precision preload linear sliding guide, the machine has high position precision, smooth chip removal, suitable for high speed and high precision machining.

Detailed Photos



Our Function
1.High rigidity, high precision spindle:
1> The spindle motor is driven by a synchronous belt, which can greatly reduce the driving noise and heat.
2> The spindle adopts precision Japanese NSK Bearings, has high speed, high precision, the maximum speed of up to 1800r/min.
3> The spindle box adopts two stepless gear changing structure.
2.High Positioning Accuracy:
It adopts C3 high precision and high strength ball screw, with high precision locking nut.
3.High quality guide rails:
x.z axis has high abrasion resistance,the speed of movement is up to 8/10m/min.Sliding rail can satisfy customers' demands of high speed and high precision.
4.Sealed protective cover for guide rail:
The lathe is provided with a sealed protective cover, which can effectively protect the guide rail and lead screw and prolong its service life.

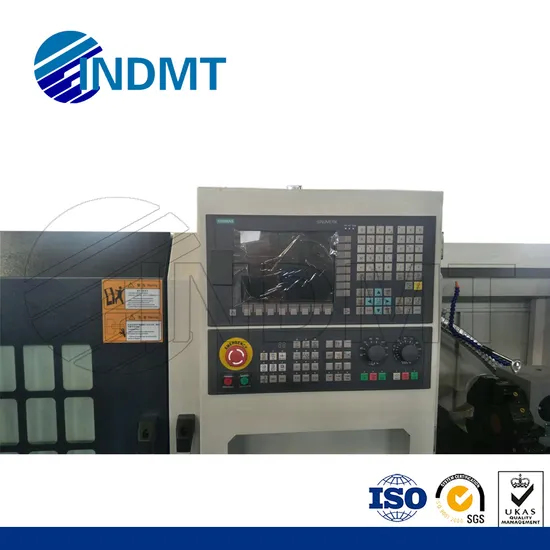

5.SIEMENS CNC system:
The operation of CNC system with a servo motor, to ensure the stability, high speed, smooth surface and high precision of the control system.
6.Automatic lubrication system:
Using Volume distributor to ensure the guide timing and quantitative supply oil to guide rail, and reduce the wastage of lubricating oil.
7.High precision pitch compensation:
Each drive shaft is tested with high-precision laser to optimize the compensation so as to make the positioning accuracy of each axis more accurate,more suitable for processing high-precision parts.

Capacity

Max. Swing over bed	Φ500mm
Max. Swing over cross slide	Φ250mm
Maximum processing length	850mm
XZ axis travel	300/1000mm
Spindle nose structure	A2-8
Thu-hole dia. of spindle	Φ82mm
Spindle transmission type	CVT
Max. spindle speed	1800r/min
Chuck size	250mm
Spindle power	7.5KW
Feed motor torque X/Z N.m	X:5 Z:7.5
Repeat position accuracy	0.005mm
Tailstock sleeve diameter	75mm
Tailstock sleeve travel length	200mm
Tailstock spindle taper mm	MT5
Turning Tool holder type	Electric 8 station

Packaging & Shipping

After Sales Service
INDMT's products implement worldwide joint warranty services. Regardless of where you buy and use our product, you can contact our company by calling the maintenance service hotline,we promises to respond quickly and solve the fault fast.
In order to meet the needs of the market and customers and better serve the customers, INDMT is equipped with trained technical service engineers with professional machine tool knowledge in major regions to provide professional after-sales service. And established 24-hour response service call platform, monitoring all service calls throughout the service quality is trustworthy!
INDMT can provide maintenance, procurement and design personnel with advice on basic knowledge of CNC machine tools, selection, installation and disassembly, maintenance of CNC machine tools and equipment management. The above services help customers to reduce installation errors, improve work and safety habits, and increase the efficiency of maintenance personnel. The machine tool achieves the best results and the longest life.

About us
INDMT is found as high precision machine manufacturer. We design, produce train and commissioning.
We produce CNC grinding machine for tungsten carbide ring. EDM diamond grinding wheel shaped machine. CNC guide ring turning and grinding machine.
We makes CNC grinding machine for carbide combination roll or high speed steel roll. Specially for rebar finish groove roller. It can help you save roller, increase the amount of steel in the roll.
We manufacture CNC heavy duty turning for carbide combination roll or high speed steel roll or high nickel molybdenum ductile iron roll supplier. CNC heavy duty roll turning lathe, it can remove ribs in the HSS roller. We produce CNC TC ring turning lathe. It will be more efficient than TC ring grinding machine. We also provide CNC turning and grind multi-functional machine. One machine can achieve rough machining and finishing.
We supplies CNC notching and logo marking machine. The machine have more models for selecting. Heavy duty CNC notching and logo marking machine is design for HSS roller and judge diameter of roller or groove.
have spare parts and CNC notching insert and CNC turning insert etc. PCD notching insert for TC RING, PCBN notching for HSS roller. TC notching insert for HSS or for high nickel molybdenum ductile iron roll. CBN turning insert for HSS roller or for iron steel roller . PCD turning insert for TC roller.
provide technical advice and maintenance and service. We accept the design the production of machine tools according to customer needs.
It is our pleasure to receive your advice or inquire. If you need more information pls visit our website indmtgroup.en.made-in-china.com

FAQ
1.How can I choose the most suitable CNC machines ?
A: Please tell me your workpiece size , it is better to send us the roller's drawing.we can choose the most suitable CNC roller notching machine model for you.
2.What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.What's the Payment Terms ?
A : T/T ,30% advance payment after order ,70% balance payment before shipment ;
Irrevocable LC payment at sight .
4.What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5.How long is the production time
A:The production time for Non-standard CNC machine is 20-30 days
