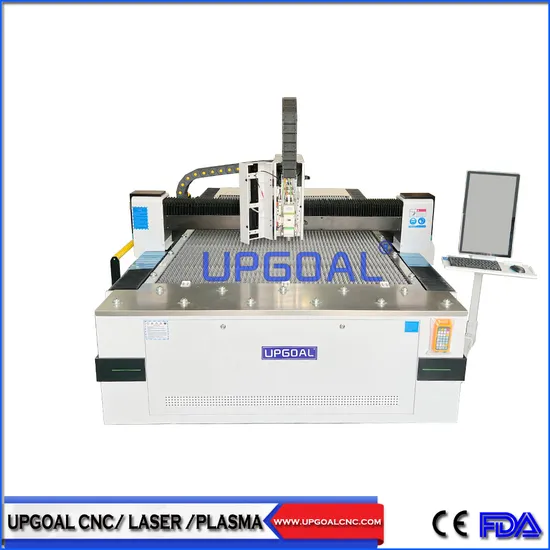

1500W Aluminum Stainless Steel carbon Steel Auto Focusing Fiber Laser Cutting Machine 1530

Product Description

Industry Super Precision 2000W 1000W 1500W Aluminum Stainless Steel Fiber Laser Cutting Machine for Metal
Applications
Suitable material
Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy paltes, rare metal and other materials cutting.
Application industry
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.
Features
1.High-rigidity heavy chassis,reducing the vibration generatedduring high-speed cutting greatly. High-performance vaiation aluminium crossbeam,after finite element analysis,realizes highly accelerated circular arc cutting speed.
2.The famous RAYTools BMH110 auto focusing fiber laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
3. Adopted stable MAX brand 1500W fiber laser source ,photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.
4. The CypCut 2000C control system with avoidance obstacle anti-collision function is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination, automatic identification of exterior and interior modes and so on, compatible, with laser source brands such as IPG, SPI, JK, Raycus, etc.
5. Adopted Fuji Japan 750W & 400W servo motor and driver for machine, the servo motor with SHIMPO reducer, more accurate, It realizes closed-loop control of position, rotating speed is more faster, general rated speed can reach 2000~3000 rpm; With high strong anti-overload capability, and smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.
6. Built control cabinet,save space
7. Industrial CPU with moving bracelet, very convenient to operate
8. S&A Teyu Industrial chiller CWFL-1500, ensuring fiber laser and laser head can be cooled quickly to ensure that the laser machine has stable power even working at high temperature, high efficient and fast operation.
9.Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the production efficiency.
10. With strong tooth type cutting blade table, can stand more thickness sheet , and ensure cutting performance
11. Auto lubrication system
12. air blower 750W for blow- off.
13. Adopted SMC Japan proportional valve, improve cutting accuracy.
14. With Feeding roller
15. With dust proof
16.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
17. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
18.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
19. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
20.Optional screw type air compress /voltage stabilizer/air filter .

Technical Parameters

Model	UG-1530FL
Effect cutting size for panel	1500*3000mm
Xaxis working area	1500mm
Y axis working area	3000mm
Zaxis working area	200mm
Laser type	Fiber laser generator
Laser working medium	Fiber
Laser wavelength	1060-1080nm
Cutting head	RAYTools BMH110 auto focusing laser cutting head
Rated output power	1500W(MAX brand)
Laser cutting system	CypCut 2000C
Driving system	Fuji Japan servo motor 750W/750W/400W
Reduction gear	SHIMPO, Japan
Guide rail	Linear square guide rail, Hiwin, Taiwan
Tranmission system	Helical rack and pinion transmission, YYC, Taiwan
Proportional valve	SMC, Japan
PositionaI accuracy	0.03mm/m
Repeated positioning accuracy	±0.02mm/m
Maximum travelling speed	100m/min
Power supply	AC380V, 50/60Hz, three phases or AC220V, 50/60Hz, single phase
Equipment power	12kw
Graphic format supported	CAD,DXF, etc
Lubrication system	Automatic
Working environment	Temp:0-40ºC,humidity:≤80%,No condensation
Certificate	CE/FDA

Reference Sample Photos
Reference Working Videos
https://youtu.be/NLN-zy6d4Xg?si=6gGI3QnyWkPt3ZsM
Accessories & packing
