Cag-002 CNC Mechatronics Production Line Laboratory Equipment Machine for Education Training

Product Description

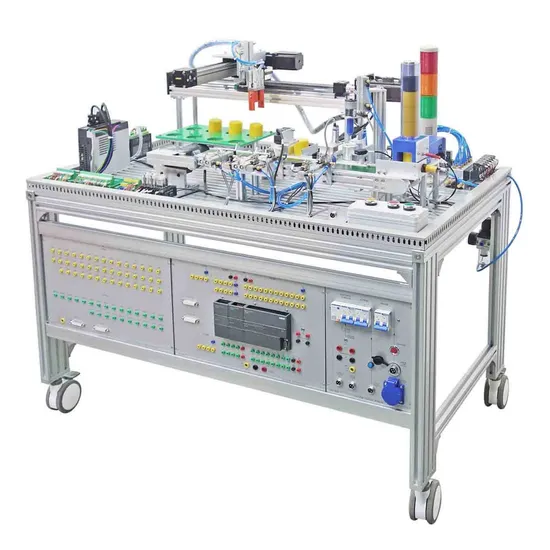

CAG-002 Mechatronics Training System (7-station) Product Description
• Comprehensive mechatronics training system & Modern factory automation integration
This is a comprehensive mechatronic training and simulation system, it offers a complete solution for the study of modern factory automation and integrates a variety of technological applications, including mechanical & electrical & electronic & information & sensor technologies, etc.
• Industrial-grade components Industrial grade components and control methods are used to fully demonstrate the factory production line system, up to seven stations are built on the platform, including feeding unit, transfer unit, drilling unit, stopper and transit unit, sorting unit, triaxial handling unit, horizontal storage unit.
• Quick connection & safe pluggable design The input and output signal cables of each actuator are led to serial ports, at the same time, all the power lines are gathered on one seat, by this way to achieve quick connection of the whole system and ensure the safe pluggable ability for practical operation.
• Open control mode for programming When the serial ports of controller panel and I/O panel are connected, user can upload the standard programs to run the system process directly for demonstration purpose without further operation. When conducting the independent design and programming training, by disconnecting the serial port to achieve an open control mode, all wiring can be done through the 4mm safety sockets with pluggable cables.
• Modular & movable experiment panel The experiment panel adopts modular design, coming with standard height that can easily be inserted into the frame area. The complete unit is movable and lockable, with complete aluminium profile structure.
Experiment Content

(1) Mechanical Structure Application	• Biaxial cylinder and guide slot formed material blanking mechanism
	• DC motor and conveyor belt formed transfer mechanism
	• Biaxial cylinder and DC gear motor formed drilling simulation mechanism
	• Sensor and storage unit formed warehouse with data feedback function
	• Servo motor, ball screw, stepping motor and synchronous belt guide rail formed cantilever type carrier
(2) Pneumatic Structure Application	• Bus board
	• Cylinder
	• Solenoid valve
	• Direction & Speed & Sequence control
(3) Electrical Control Application	• System I/O, digital quantity, high speed quantity, extended module
	• Limit sensor, photoelectric sensor, fiber optic sensor, metal sensor, magnetic sensor and color mark sensor
	• Power supply module, controller module and interface module
	• Servo driver, stepping driver
	• Single solenoid and double solenoid valves
(4) Programming Application	• Sequential structure, selective structure and cycle structure
	• Switching value realized cylinder motion control, DC motor control, conveyor start/stop control, indicator control
	• Pulse value realized stepping motor control, servo motor control

Configuration
1. Mobile table - Complete aluminium profile frame - 4 extruded vertical aluminium profiles with 8 grooves - 2 H-shaped profiles for A4 panel organization - 4 swiveling casters, 2 of which have brakes - Profile with groove distance of 25mm for mechanical installation - Table dimension of 1210mm*700mm*750mm (approx.)
2. Feeding unit - Yellow nylon column for transit and storage process - Black nylon column for waste sorting process - Circular hole type metal column for drilling process ...... 3 Transfer unit - Sensors: photoelectric sensor - DC 24V, 30W gear motor of 1800rpm with ratio 1:75 - Flat belt mechanism of width 50mm / length 625mm ...... 4. Drilling unit - Sensors: laser sensor 300mm, metal sensor 8mm - Biaxial cylinder with magnet switches and flow control valves - Single acting cylinder with magnet switches and flow control valves ...... 5. Stopper and transit unit - Sensors: color mark sensor, two laser sensors 300mm - Biaxial cylinder with magnet switches and flow control valves - Single acting cylinder with magnet switches and flow control valves ...... 6. Sorting unit - Sensors: laser sensor 300mm - Biaxial cylinder with magnet switches and flow control valves - Aluminium profile guide slot for black workpiece storage 7. Triaxial handling unit - Sensors: groove type photoelectric sensor, magnet sensor, micro switches - Stepping motor: 57mm, 1.2N-M, pitch 1.8° - AC servo motor: 60mm, 400W, 3000rpm ...... 8. Horizontal storage and retrieval unit - 8 storage positions with aluminium support - Base plate with 8 position feedback switches - Storage area: 200mm*300mm (approx.) 9. ADY-002 Power supply module - Circuit breakers 20A/10A/6A - Input AC220V circular connector with indicator - AC output 220V with indicator / circular connectors ...... 10. AMP-003 PLC control module - Programming languages STL/LAD/FBD - Mainframe digital input/output: 24 inputs, 16 outputs (3 with high speed pulse) - Ethernet / RS485 communication with signal board ...... 11. AIO-003 Input & Output interface module - 4mm safety sockets for self wiring purpose - Coded printing for each I/O for easy identification - 44pin serial input interface ...... 12. Air compressor - Motor power: 680W - Input voltage: 220V, 50Hz - Coming with filter, pressure gauge, power cord, etc.
...... 13. Accessories - Serial connecting cables - Programming software - Tools kit - Experiment guidebook
...... > > Additional Purchased Modules (optional) 1. HMI monitoring unit (not included in standard configuration) This unit enables the operation for system start/stop/reset by both hardware and software methods, it can real time monitor the storage and retrieval unit with display function, showing the material type on each position - Ethernet communication

>> After-sales Service
Guidance	Installment guidance
	Experiment guidance
Warranty	One year warranty, lifetime maintenance
