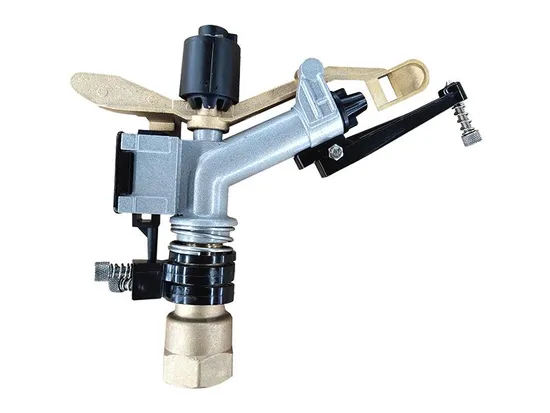

Fs25 12-17 M Range Spray Radius 1"Female Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation
Basic Info.
Model NO.
FS25
Power Source
Pressure
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Immersible Pump
Material
Metal
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CCC, CE, GMP
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Warranty
1 Year
After-sales Service
1 Year
Color
Silver
OEM
Yes
Transport Package
Export Carton
Specification
71*23*27
Trademark
FOISON
Origin
China
HS Code
8424200000
Production Capacity
20000/Month
Product Description
| Model | FS25 | Model | FS30 | |||||
| Material | Al,nylon,ss | Material | Al,nylon,ss | |||||
| Use | Agriculture,forestry,garden | Use | Agriculture,forestry,garden | |||||
| Connection | 1" Inner thread | Connection | 1-1/2" Inner thread | |||||
| Working pressure | 0.15-0.4MPa | Working pressure | 0.15-0.5MPa | |||||
| Range | 12.5-19.5m | Range | 16-29m | |||||
| Sprinkler type | 360°, Adjustable | Sprinkler type | 360°, Adjustable | |||||
| Spray angle | 24° | Spray angle | 24° | |||||
| D (mm) | P (Mpa) | Q (m³/h) | G (m) | D (mm) | P (Mpa) | Q (m³/h) | G (m) | |
| 5 | 0.15 | 1.2 | 12.5 | 0.15 | 5.1 | 16 | ||
| 0.2 | 1.3 | 13.5 | 8 | 0.2 | 5.9 | 17.5 | ||
| 0.3 | 1.6 | 15 | 6 | 0.3 | 7.2 | 19.5 | ||
| 0.4 | 1.9 | 16.5 | 0.4 | 8.4 | 21 | |||
| 6 | 0.15 | 1.6 | 13 | 0.2 | 7.8 | 18 | ||
| 0.2 | 1.9 | 14.5 | 10 | 0.3 | 9.5 | 21 | ||
| 0.3 | 2.3 | 16.5 | 6 | 0.4 | 11 | 23 | ||
| 0.4 | 2.7 | 17.5 | 0.5 | 12.4 | 24.5 | |||
| 7 | 0.15 | 2.2 | 14 | 0.2 | 10.1 | 19.5 | ||
| 0.2 | 2.6 | 15 | 12 | 0.3 | 12.4 | 22 | ||
| 0.3 | 3.1 | 17 | 6 | 0.4 | 14.3 | 25 | ||
| 0.4 | 3.7 | 18.5 | 0.5 | 16.1 | 27.5 | |||
| 9 | 0.15 | 3.7 | 15 | 0.2 | 16 | 21 | ||
| 0.2 | 4.3 | 16.5 | 16 | 0.3 | 19.6 | 24 | ||
| 0.3 | 5.2 | 18.5 | 6 | 0.4 | 22.7 | 26.5 | ||
| 0.4 | 6.1 | 19.5 | 0.5 | 24.8 | 29 | |||
