Fully Automatic Computer Controlled HDPE LDPE Garbage Bag on Roll Rubbish Bag Making Machine Coreless Star Sealing Rolling Bag Maker
| US$20,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HSVZ-700
Product Line
1
Lines
1
Voltage
380V
Speed
High
Continuous-Rolled
Yes
Sealing & Cutting
Heat-Sealing Cold-Cutting
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Width of Bags
400mm-600mm
Length of Bags
150-1500 mm
Bag Making Speed
80-100 M/Min
Air Compressor
5HP
Main Power
12kw
Machine Weight
2800kg
Procedure
Fold First, Then Seal and Perforating in The Last
Unwinder Film Width
400-600mm
Rewinder Bag Width
200-300mm
Transport Package
Wooden Pallet
Specification
L7000*W2400*H1500mm
Trademark
High Sea
Origin
Made in China
HS Code
84778
Production Capacity
500sets/Year
Product Description

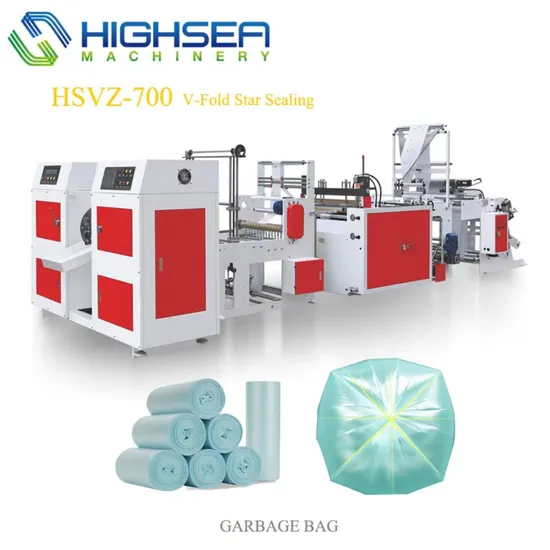

| HSVZ-700 Fully Automatic One Time V-fold Star Sealing Garbage Bag Making Machine |
| Application |
| This machine is heat sealing and teeth cutting for bag peferation, which are suit for printing and non-printing bag making. The material of bag is LDPE, HDPE and recycle materials. HSVZ-700 machine is bottom sealing perforation bag machine. Machine design for sealing first, then fold and perforate in the last. Double times V-folds will make film smaller and bottom sealing. Tear out one pcs of rewinder bags, it can be opened and insert into the large trash can. This machine is folding first, then sealing and perforation in the last. Star sealing bag on roll coreless. |
| TECHNICAL PARAMETER | |
| Model | HSVZ-700 |
| Bag Width | 400mm-600mm |
| Rewinder Roll Width | 200mm - 300 mm (customized) |
| Bag Length | 200mm - 1500 mm |
| Film thickness | 10-35µm per layer |
| Production Speed | 100-200pcs/min*1 Line |
| Set Line Speed | 80-100m/min |
| Film Unwind Diameter | Max. Φ900mm |
| Total Power | 12KW |
| Air consumption | 5HP |
| Machine Weight | 2400KG |
| Machine Dimension | L7000*W2300*H2000mm |
| Samples of Plastic Bag |
| SPECIFICS |
| The condition of machine operating |
| A. illumination no exceed 3000LX B. altitude no exceed 1000m C. The temperature of stuff around the machine should be no higher than +40ºC and no lower than -20ºC. D. The relative humidity of air no exceeds 85%. E. The place should no have conductive dust. F. Circumstance of no blast danger and fire. |
| Company Brief Introduction |
| Wenzhou High Sea Machinery CO.,LTD is founded in 1996 (Formerly known as Jinfeng plastic packaging machinery factory). For more than 22 years, we focus on researching, developing, manufacturing and marketing on plastic bag making machine. Our products include : 1.Plastic T-shirt Bag Making Machine 2.Vegetable Bag on Roll Making Machine With Core 3.Garbage Bag Making Machine Coreless 4.Draw Tape Garbage Bag on Roll Making Machine 5.Soft Loop Handle Bag Making Machine There are more than 54 countries and regions cooperating with us, such as south Korea, Turkey, Malaysia, Russia,Iran, Ethiopia, Chile, Saudi Arabia, Peru, Algeria,Vietnam,etc. |
