Woodworking Machinery High Precision Wood Cutting Machine Horizontal Sliding Table Panel Saw

Product Description

Product Description

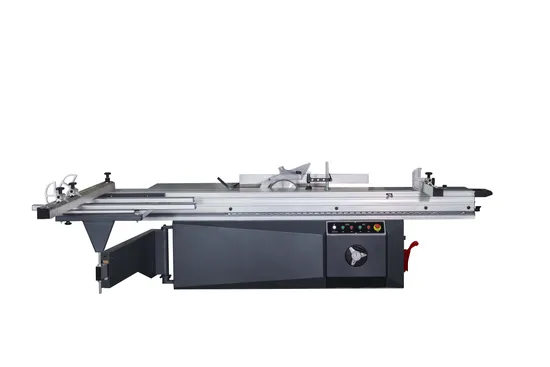

The ZDV6 Sliding Table Saw is expertly crafted to cut a variety of materials including solid wood, chipboard, ABS board, PVC board, organic glass board, and other similar structures. It is an indispensable tool in the furniture production and decoration industry. This machine comprises a robust body, sliding table, support for the sliding table, fixed table, main saw blade, scoring blade, up & down system, and both transverse and vertical guide plates. The linear-structured sliding table carriage is both precise and durable, made of high-strength extruded aluminum alloy. Its surface, treated with oxidation, exudes beauty and endurance.
Detailed Photos

Independent Electric Box
The independent electric box is dustproof and has a low power failure rate. High-quality electrical components, more sensitive and has longer life .
Sawing combination structure
Use high-standard, powerful motors. Three speeds can be adjusted manually. The motor structure adopts precision rail lifting to ensure stability and service life, and high positioning accuracy.
Control panel
Use high-quality keys, easy to control and not easy to break. Precision handwheel lever and dial precisely control lift/tilt changes.(Electric lift, tilt optional) One-touch start-stop button. Keep workers safe
Pressing device
Assist the worker to press the wooden board on the sliding table. Keep the board stable. Some other brand saws even do not contain an press device.

Product Parameters

demension of sliding table	3200*388mm
gross cut capcity	3200mm
witdth of cut between saw blade and rip fence	1250mm
tilting saw group	0-45°
diameter of main saw blade	300mm
max cutting height 90°/45°	80/55mm
speed of main saw spindle	4000/6000r.p.m
main saw motoe power	5.5kw
main spindle diameter	30mm
diameter of scoring saw blade	120mm
speed of scoring saw spindle	8000r.p.m
scoring saw motor power	1.1kw
scoring saw spindle diameter	20mm
gross weight	850kg
overall diamension	3250*3150*900mm

Our Advantages
Magnetic scale/ Rangefinder (Optional)
Automatically measures the width of cut. Compared with large scale, it is more accurate and efficient.
Fuselage frame with gantry milling the overall processing, laser cutting, flatness is good, the body using electrostatic spraying process, not burst paint.
Heavy duty bracket

The wide and sturdy bracket can better support large-sized plates, and the precision measuring ruler can extend up to 3m
According to the mold seat, the exclusive design, the hole machining center milling hole, smooth sliding, feel smooth, mm level with fine-tuning function, save time and effort, supporting 150 * 50 by the mold column, cutting 1300 plate, With 1350 * 30,40 / 45, cutting 1160 board.

Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers. About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
Certifications

Our Customers

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .
