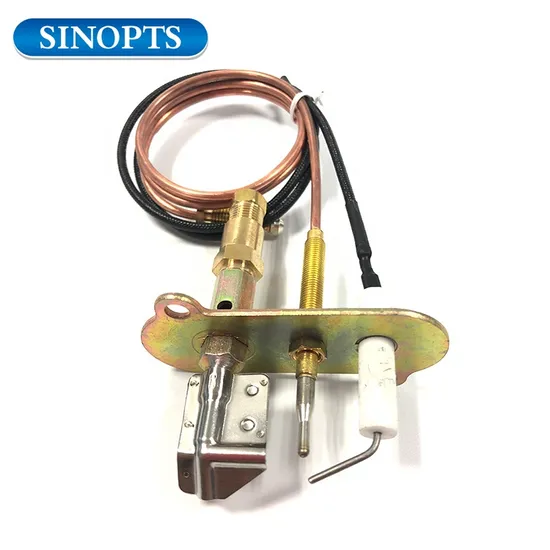

Sinopts Ng Pilot Burner Assemblies with Thermocouple Ods

Product Description

Product Description
ODS Pilot Burner is called ODS for short.When a gas appliance is operated in a non-ventilated space for a period of time, Oxygen participates in chemical reactions and produces carbon dioxide and water when burned. In this case, the oxygen content in this space will decrease and the carbon dioxide content will gradually increase. When the oxygen content is less than 16% to 17%, people may feel uncomfortable. When the CO2 content reaches 4% or higher, it may even cause poisoning.
However, the ODS long open flame can avoid the above dangers and make the gas appliance operate safely in a non-ventilated environment. When the oxygen content in the air reaches 18.5% to 19.5% and the carbon dioxide content reaches 0.8% to 1.5%, the ODS will cut off the gas source and stop the gas appliance to ensure personal safety.

Technical parameters
Applicable gas species	LPG,NG,Propane & Butane
CO2	0.8%-1.5%
O2	≥19.0%
CO	≤50ppm
Inner resistance	5-50±3 mΩ
No-load potential	≥20mV(650ºC)
Connector	Nut (M8*1,M9*1) or others
Axial tension 50N, sustain 1 min, no loose, no cut
The length according the client's request

The flame sensors are one of the following types:
1. Thermocouple: A device made of two different metals which creates a small electrical charge when heated at one end.
2. Thermopile: A probe that contains multiple thermocouples, therefore it can produce a larger electrical current.
3. Electrode sensor: The rod places the same role as thermocouple
Note: many pilot assemblies look different but all function in the same way.


What's ODS?
ODS is designed based on pilot burner with an extra function.
Oxygen depletion sensors (ODS) are commonly found on heaters and fireplaces. The sensor is designed to shut off the gas if the oxygen level in the room drops from 21% (normal air) to 18.5% oxygen by volume or below.
Product Show
Product Applications
Our Services
Packing Details
FAQ Q1. Can I have a sample for testing?
A: Yes, samples can be made according to customer's request.
Q2. Can it be customized?
A: Yes, send us the drawing and trademark authorization letter accordingly.
Q3: What's your delivery way? A: By sea, by air, by courier as per request. Q4: How can I pay? A: T/T, PAYPAL,WESTERN UNION,MONEYGRAM,ALIPAY,L/C.
