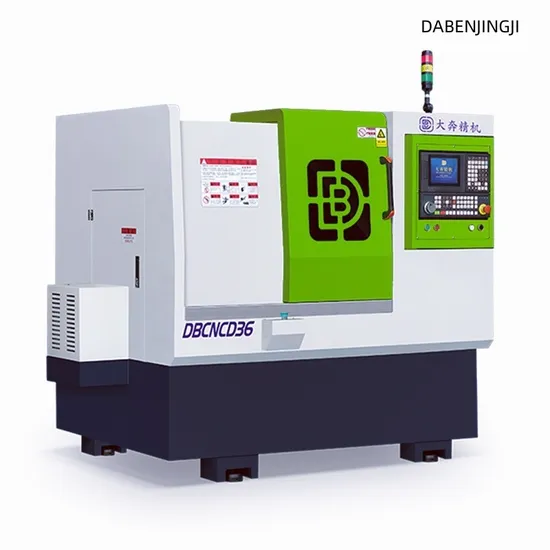

dB-6136 Series Inclined Rail Gang Tool CNC Lathe, High Efficiency Model

Product Description

Model characteristics1.The T-shaped tool changer board reduces tool change times, enhancing production efficiency and versatility.
2.A 35-degree slant bed design facilitates easy loading and unloading of workpieces for operators and ensures smooth chip evacuation.
3.With an extra-large 800mm X-axis travel and 300mm Z-axis travel, it facilitates tool arrangement and allows for turret and powered head installations.
4.Upgraded simple lathe-mill compound options offer multiple selections, including the option to install a flying cutter disc, enabling 4-axis coordinated movement.
5.The integrated cast-formed bed ensures machine stability and precision after assembly, housing an independent spindle unit.
6.Optional installations include: side/end power heads, side 2/3/4 with Y-axis power heads, 2+2/3+3/4+4 with Y-axis power heads.
7.Prominent features include high rigidity, quick tool changes, high performance cost ratio, with front/rear oversized chip evacuation design.
Standard configuration
- New generation system
- NSK bearings from Japan
- Overall cast iron bed
- Taiwan Shangyin/Yintai ball screws
- Taiwan Shangyin/Yintai guides
- Taiwan Jiancheng/Taiwan Pusen spindle
Technical parameters

Model	DBCNCD36
Item	Describe	unit	Parameter
Spindle	Spindle nose end	/	A2-4
	Spindle bore	mm	46
	Bar diameter	mm	36
	Chuck/collet size	/	5 "/36 type collet
Machine range	Maximum slewing diameter	mm	380
	Maximum turning diameter	mm	300
	Maximum processing length	mm	280
	Tool holder plate and spindle center height	mm	60
Mechanical capacity	Maximum spindle speed	rpm	6000
	Maximum X/Z speed	m/min	30/25
Mechanical precision	Spindle indexing repeatability	/	±0.005°
	Spindle indexing positioning accuracy	/	±0.002°
	X/Z axis repeatability	mm	0.002mm
	X/Z axis positioning accuracy	mm	0.003mm
Axial travel	X-axis travel	mm	800
	Z-axis travel	mm	300
Turret	Turret model	/	180 center height
	Number of tool positions	T	8T/10T/12T
Motor power	Spindle servo motor	KW(HP)	5.5
	X/Z axial servo motor	KW(HP)	1.3
	Servo motors for milling axes	KW(HP)	0.45
Other than	Height of spindle from ground center	mm	980
	Total machine power	KW	About 7.0
	Machine external dimensions (L*W*H)	mm	About 1650*1200*1680
	Overall weight	KG	About 2000

Detailed Photos Enhance processing efficiency with our Fast-Tool-Changing Slant Bed Turret CNC Lathe from Dongguan Daben. Ideal for metal processing, this CNC machine ensures improved productivity. Online support and a 1-year warranty included.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures
common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.
