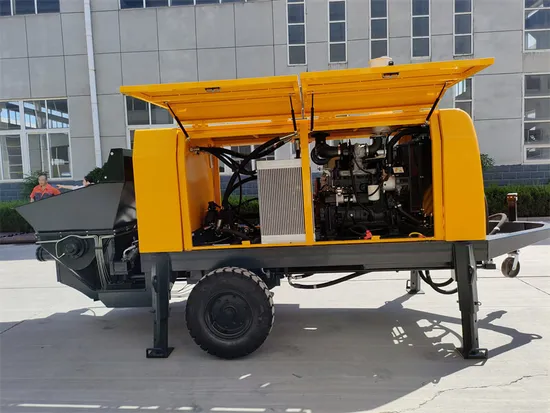

Diesel Mini Small Concrete Trailer Pump for Sale
Small Diesel Concrete Pump is equipped with diesel engine, quite suitable for building and construction, etc. For fine stone concrete conveying, floor heating construction, mortar conveying, etc. It is the lowest cost, most versatile, most simple, safest pump ever built.
Brief introduction of Concrete Trailer Pump:
In order to meet the demand of open country and other no-power supply constructions, we researched and developed the diesel engine concrete pump. Our concrete pump is set of mechanical, electrical, and hydraulic technologies, with reliable performance of smooth operation and strong pumping capability. The diesel engine is of advanced high quality, low emission, low fuel consumption, and meets the advanced standard. Reliability and stability are guaranteed by automatic engine regulation.
Please contact us for Concrete Trailer Pump catalog and price Detailed Photos
Power system
The power system consists of technical diesel engine. A strong power system reduced the rate of occurring faults;
Hydraulic System
A complete set of imported hydraulic components and special anti-wear hydraulic oil guarantees high efficiency and long service life.
Power system
The domestic first-class brand electrical motor is equipped, which provides constant and stead power.
Please contact us for trailer concrete pump truck price and catalog
Our Advantages
Feature of concrete pump:
Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation
Plunger pump with constant power, to ensure the efficiency of the main engine
Good sealing S-valve, installed with a floating wear-resistant ring
High-quality wear-resistant alloy components for long service life
High delivery pressure for demand of high-rise and long-distance projects
Air cooling system, without dependence on external water
PLC system to ensure the best control performance
With re-pumping function to smooth construction of better accessibility
Equipped with wired remote controller, easy to operate
Please contact us for concrete pumping machine price and catalog
Application of concrete pump:
Conveying heating, heat insulation, lightweight foam cement mortar.
Conveying lightweight foam cement, mortar for ground heating, and heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.
Product Parameters
Data of small concrete pump:

Model	HBT20D	HBT30D	HBT40D	HBT60D
Theoretical delivery capacity (m3 / h)	high pressure 12, low pressure 21	high pressure 16, low pressure 30	high pressure 23, low pressure 48	high pressure 27, low pressure 55
Theoretical delivery pressure (MPa)	high pressure 7, low pressure 4	high pressure 8, low pressure 4	high pressure 11, low pressure 5.3	high pressure 13, low pressure 6.2
Conveying height (m)	horizontal 350, vertical 120	horizontal 400, vertical 120	horizontal 400, vertical 150	horizontal 400, vertical 150
Rated power of main power system (Kw)	40	46	66	129
Distribution valve form	S valve	S valve	S valve	S valve
The maximum aggregate content of gravel/pebbles (mm)	30/25	30	35/40	40/45
Expansion slump (mm)	100-230	100-230	100-230	100-230
Power	Diesel power, 4-cylinder	Diesel power, 4-cylinder	Diesel power, 4-cylinder	Diesel power, 4-cylinder
Loading volume (m3)	0.4	0.4	0.5	0.5
Loading height (mm)	1100	1100	1100	1100
Host mass (kg)	2500	3100	3360	6000
Overall dimensions L * W * H(mm)	4300×1670×1680	4300×1670×1680	4850×1670×2070	6500×2160×2600

Please contact us for the mini concrete pump machine price and catalog After Sales Service
Warranty:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by the seller free of cost (excluding wear and tear parts), improper operation, and other manmade reasons are excluded.

Our Advantages and Services:
Factory directly supplies.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability, and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare Parts Supply Timely

FAQ
Q1: What's the form of the distribution valve for the concrete pump?
A: Its S valve.

Q2: What about the output you can supply?
A: The output we can supply is from 12CBM/hour to 80CBM/hour.

Q3: The matched pipes or hoses can't meet our requirements, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.

Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here to offer service in 24hours every day.
