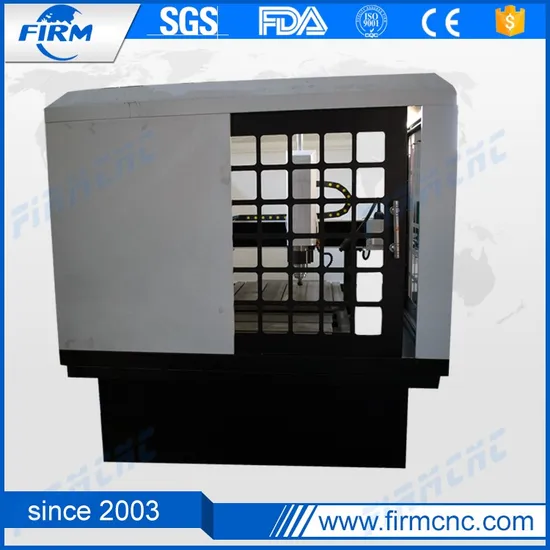

600*600 Metal Engrave Machine Metal Cutting Machine

Product Description

600*600 Metal Engrave Machine Metal Cutting Machine
Specification:
# FM-6060 cnc moulding machine (600 * 600mm)
# Customized machine
# One year warranty, the whole life technical support.

600*600 Metal Engrave Machine Metal Cutting Machine Brief configuration
#Working area: 600 * 600 *200 mm
# Table Surface: T-slot
# Frame: The whole cast iron bed
# Spindle: 2.2kw/ 3KW constant power spindle ( 24000rpm/min)
# Inverter: Fuling Inverter
# Drive motors: servo motors and drivers
# Control system: NC Studio control system
# Drawing software: Artcam or Type3
# X, Y, Z structure: Taiwan TBI Ball Screw
# Rails: Taiwan Hiwin linear square guide rail
# Working Voltage: AC220V/60HZ
# Command: G code

600*600 Metal Engrave Machine Metal Cutting Machine main parts show
# 3.0kw water cooling spindle, professional water cooling spindle,low noise,vigorous working strength, and long time mass processing
# Servo motor and driver,select matching to ensure smooth movement and great working strengt
# Taiwan Hiwin square guide rails and block, high accuracy
# NC Studio control system, easy operation (with hand wheel
# France Schneider contactor and leakage protector
600*600 Metal Engrave Machine Metal Cutting Machine Application
1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2. It can widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3. Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand, graphics and words of three-dimensional and outside surface's sleeking of large size.
600*600 Metal Engrave Machine Metal Cutting Machine Samples show
Packaging & Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Our Services
1. one years quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
Every step strict test to make aure high precision.
Company Information
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE SGS certificate.The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.

FAQ
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
