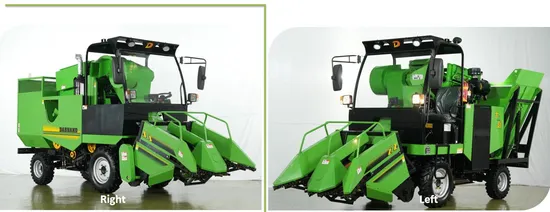

Green Color Cabin Kind 2/3/4 Row Corn Harvester Easy Use with 4WD

Product Description

Features:
Technology features:
1. Compact structure, low center of gravity, shorten body, flexible operation, high efficient.
2.NEW Roller type of header ,new roller design,picking corn ear speedy ,no blockage and no slip.
3. Front chopper of flail knives,straws cutting and returning the field, working fluency, speedy and efficient.
4. Plain-barreled roll peeling machine, grain recycle dual stirring+ multiple-blade draught fan, good peeling, high recovery.
5. Bigger grain tank, height lowered 80mm, bigger effective volume.
6. Hydraulic main clutch harvesting, speedy and portable.
7. 4WD, high gradeability, suitable for different landforms
8.Bland of Quanchai engine 100hp,powerful and efficient.
9.Kernel unloading is mechanical automatic unloading,unloading speedy.
10.Standard with simple cab and suction fan,Strong fan, more cleaning.
Parameters
Item Project Design Value
1 Model 4YZP-2A/2A1
2 Type Wheel self-propelled
3 Engine type Quanchai 4 cylinder engine
4 Engine Rated Power 70/100hp
5 Engine Rotary speed 2400rpm
6 Overall Weight 2860kg
7 Overall dimension 4980×1780×2700mm
8 Working rows 2
9 Working width 1300mm
10 Application row width 450-700mm
11 Cutting center distance 650mm
12 Max. unloading height 1860mm
13 Conveyor Structural style Chain scraper
14 Conveyor Max. Crossing altitude 2340mm
15 Min. Ground Clearance 270mm
16 Working speed 2~6km/h
17 Productivity 0.23-0.40 hm2/h
18 Fuel consumption ≤35g/(kW▪h)
19 Snapping roll/Board type Rubber roller type
20 Snapping roll/Board type size Snapping roller/ 864/904mm
21 Stripping roller form Rubber Roller
22 stripping roller sizeФ74×900
23 Qty of stripping rollers 8
26 Grain Tank Volume 1500L
27 Grain Unloading type Hydraulic
28 Grain driving type Hydraulic cylinder
29 Stalks crusher Working width 1120mm
30 Stalks crusher Position Under picker head and middle machine
31 Gearshift method Mechanical
32 Drive Axle Type Mechanical Gearbox
33 Drive Axle driving type Mechanical
34 Steering Type HST
35 Steering Power mode Hydraulic gearpump
36 Brake Type Disc
37 Brake Power mode Hydraulic power assisted
38Wheel Track (Guiding Wheel) 1290mm
40 Wheel Track (Driving Wheel) 1180mm
41 Tyre Size (Guiding Wheel) 6.0-12
42 Tyre Size (Driving Wheel) 7.50-16
