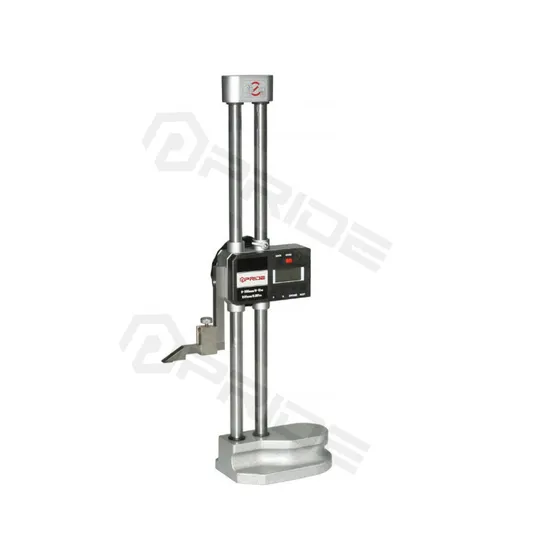

Double Column LCD Display Digital Height Gauge Measuring Tools

Product Description

Double Column LCD Display Digital Height Gauge Measuring Tools
Basic Info Smooth operation of slide carriage using crank wheel. With fine adjustment. Metric/Inch system interchange. OFF/ON P-: Negative preset, P+: Positive preset ZERO/ABS Relative/Absolute measuring shifter RESET: preset/Set to zero for display. Dial Indicator mounting arm accepts φ6mm, φ8mm,and dovetail type indicators.(optional)
Specifications

Model No.	Range	Graduation	Accuracy
P6013-300	0-300mm/0-12"	0.01/ 0.001"	±0.04mm/±0.0015''
P6013-450	0-450mm/0-18"	0.01/ 0.001"	±0.05mm/±0.002''
P6013-500	0-500mm/0-20"	0.01/ 0.001"	±0.05mm/±0.002''
P6013-600	0-600mm/0-24"	0.01/ 0.001"	±0.05mm/±0.002''
P6013-1000	0-1000mm/0-40"	0.01/ 0.001"	±0.07mm/±0.0028''

Product Picture
