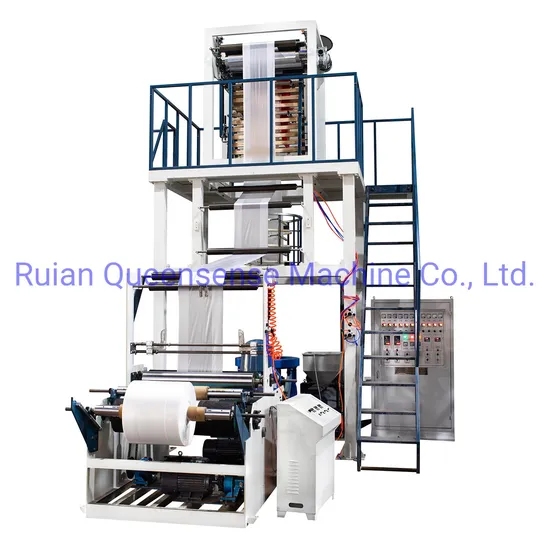

PLA Pbat Bt Biodegradable Film Blowing Machine Blown Film Machine for Bag
| US$11,000.00-13,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QS-A55
Type
PE Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
1200mm
Screw Diameter
65mm
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE
Screw Number
Single Screw
Screw Ratio
28:1
Screw Material
38crmoala
Funcion
Blowing Film
Transport Package
Seaworthy
Specification
CE
Trademark
QUEENSENSE
Origin
China
HS Code
84773000
Production Capacity
25-85kgs/H
Product Description
Use:Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Optional equipment:
1). Auto load
2). Air compressor
3). Special die
4). Die rotary device
5). Bouble sides winder
6). Up and down
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ50 | φ55 | φ65 | φ65 |
| Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max.Extrusion(Kg/h) | 35 | 50 | 65 | 80 |
L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main moto(kw) | 11 | 15 | 18.5 | 22 |
| Power of Tracion main moto(kw) | 0.75 | 1.1 | 1.5 | 1.5 |
| Heating Power(kw) | 15 | 18 | 23 | 27 |
Outline diameter(L x W x H) (mm) | 4800 x 1900 x 4100 | 5500 x 2100 x 4700 | 6500 x 2300 x 4900 | 6500 x 2500 x 5600 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
