Computerized Automatic Plastic Machinery Pure Water Bottle Blow Molding Machine

Product Description

Product Description

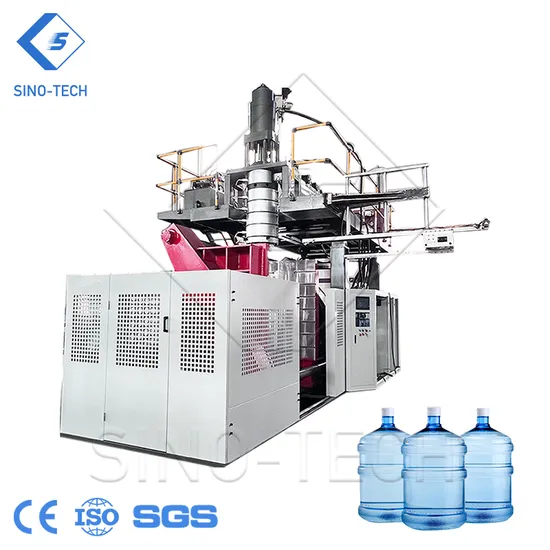

Computerized Automatic plastic machinery pure water bottle blow molding machine
This machine is specialized in making the 3~5 gallons water bottle.The material can be PC and Tritan.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Customize the products according to your requirement
Product Description
STD-25APC Bottle Blow Molding MachineMachine Features
1. Special design for 3 gallon 5 gallon water barrel and lamp cover...
2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose
10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head and Single station.
Product Parameters

Technical Specification		STD-25APC Accumulator
		Extrusion Blow Molding Machine
Specifications		STD-25APC
Max. Product Volume	L	25
Station		Single
Dry cycle	pc/h	600
Screw Diameter	mm	82
Screw L/D ratio	L/D	38(30)
Screw drive power	KW
Screw heating power	KW	41.7
No.of heating zone(Screw)	ZONE	8
Output of HDPE	kg/h	160(PC)
Hydraulic pump driving power	KW	45
Clamping force	KN	215
Platen distance	mm	350~780
Max.Size of Mold	(W*H)mm	550*650
Capacity of Accumulator head	L	1.9
Max.Die diameter	mm	150
Die heating power	KW	11.3
Number of heating zone	ZONE	4
Blowing pressure	Mpa	1.2
Air consumption	M3/MIN	1
Cooling water pressure	Mpa	0.3
Water consumption	L/MIN	150
Size of machine	(L*W*H)m	6.3*2.2*3.8
Weight of machine	TON	12

Detailed Photos

Company Profile
Packaging & Shipping
Customer Feedback
FAQ
Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
