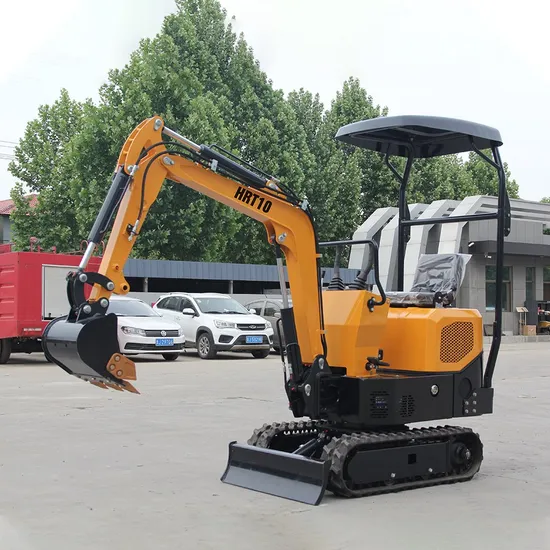

Factory Price CE/EPA Wholesale Hr1-10 Tons Mini Hydraulic Crawler/Wheel Excavator
Basic Info.
Model NO.
HR10
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
OEM Supported
Yes
Rated Speed
1.9km/H
Moving Type
Self-Propelled
Gradeability
58%(30degree)
Bucket Digging Force
7.2 kN
Rated Power
7kw/3000rpm
Engine Type
Water Cooling/Air Cooled
Engine
Yanmar /Changchai /Koop
Closed Cab
Optional
Radius of Gyration
1480mm
Digging Depth
1715mm
Maximum Digging Height
2600mm
Maximum Unloading Height
1830mm
Maximum Digging Depth
1590mm
Maximum Digging Distance
3077mm
Transport Package
20gp Container
Specification
2840*880*2220mm
Trademark
HIGHRICH
Origin
Shandong, Qingdao
HS Code
8429521200
Production Capacity
50000/Year
Packaging & Delivery
Package Size
284.00cm * 88.00cm * 222.00cm
Package Gross Weight
850.000kg
Product Description
Highrich excavators use weichai efi engines (compliant with national iii emission regulations), which are powerful, energy-efficient, reliable and durable; comfortable to operate, high operating efficiency and excellent cost performance.• High-power efi engine, powerful, low fuel consumption and high reliability
• Brand-new hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and more convenient operation
• A new generation of control system, intelligently adjusts the hydraulic absorption power according to the working conditions, optimizes the system matching and ensures full performance of the whole machine.
• Brand-new cab, safe and reliable.
• There are other models, such as 1 ton, 1.2 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 2.2 tons, 2.5 tons and so on.
| Technical Parameters | |||
| Engine | Travel system | ||
| Model | Popular Science KD192F-1 | Travel motor | BMT310 |
| Type | Direct injection, air-cooled, naturally aspirated | Number of rollers | 2×2 |
| Number of cylinders | 1 | Number of sprockets | None |
| Bore*stroke | 92x75 | Track shoes | None |
| Displacement | 0.499 | Travel speed | 1.9km/h |
| Output power | 7kw/3000rpm | Traction force | 8.3KN |
| Torque | 27N.m/2200rpm | Climbing grade | 58%(300) |
| Track thickness | 4mm | ||
| Hydraulic system | Boom, arm, bucket | ||
| Main pump | CBT-F306 | Boom cylinder | Φ63xΦ30xS285-L590 |
| Type | Gear pump | Arm cylinder | Φ50xΦ30xS325-L535 |
| Maximum flow | 18 L/min | Bucket cylinder | Φ50xΦ30xS240-L470 |
| Maximum unloading pressure | Rotary system | ||
| Boom, arm, Bucket | 16MPa | Swing motor | BMR200 |
| Travel | 16 MPa | Swing motor type | Gerotor motor |
| Swing | 16 MPa | Brake | None |
| Control | None | Parking brake | None |
| First-come control pump | None | Swing speed | 13 r/min |
| Main control valve | DL80 | Oil quantity & lubrication | |
| Oil cooler | Air cooling | Diesel tank | 7L |
| Bucket | Cooling system | Hydraulic oil cooling | |
| Type | Backhoe | Engine oil | 1.2L |
| Bucket capacity | 0.023m3 | Hydraulic oil tank | 14.5L Fuel tank oil position |
| Number of teeth | 3 | 21.5L Hydraulic system | |
| Bucket width | 380 mm | Digging force | |
| The scope of work | Maximum digging force of bucket | 7.2 KN | |
| Boom length | 1480m | Maximum digging force of bucket arm | 4.6 KN |
| Maximum digging height | 2600mm | Dimensions | |
| Maximum unloading height | 1830mm | Overall length | 2840mm |
| Maximum digging depth | 1715mm | Ground contact length (transporting position) | 2611mm |
| Maximum vertical digging depth | 1590mm | Height (to top of boom) | 1040mm |
| Maximum digging distance | 3077mm | Overall width | 880mm |
| Maximum digging radius | 3065mm | Overall height (to top of cab) | 2220mm |
| Minimum swing radius | 1480mm | Distance from counterweight to ground | 385mm |
| Operating Weight and Ground Pressure | Minimum ground clearance | 132mm | |
| Operating weight | 850kg | Tail swing radius | 800mm |
| Ground pressure | 20 KPa | Track ground length | 900mm |
| Track length | 1233mm | ||
| Track gauge | 670mm | ||
| Track width | 840mm | ||
| Track width | 180mm | ||
| Counterweight height | 794mm | ||
| Swivel frame width | 760mm | ||
| Distance from slewing center to tail | 795mm | ||
