Qt4-15 Automatic Building Concrete Block Making Machine

Product Description

Product Description

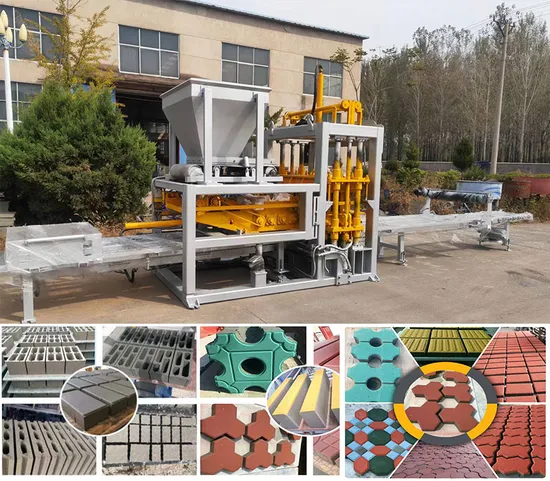

Hongfa factory HF Logo QT4-15 brick making machine block making machine for hollow bricks solid bricks and paver curbstone bricks
QT4-15 Block making machine adopts the leading technology for block machine in the world, Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density. Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material , high frequency vibration makes the material to have a optimal vibration way. The computer is fault diagnosis system. Warming signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.

Technical Parameter	Detailed Data
Overall Dimension	7310*2500*2900mm
Rated Pressure	16MPA
Main Vibration Form	Platform Vibration
Pallet Size	1020*570
Mould cycle	15s
Exciting force	55kn
Overall power	27.5KW
Vibration frequency	2800-5100R/MIN

Our Advantages

Capacity of QT4-15 Block making machine brick making machine for paver solid hollow bricks and curbstone blocks

Block Name	Sample	Size	Qty/ mould	Cycle time	Qty/hour	Qty/8hour
Hollow block		400x200x200mm (8 inches)	4pcs	15-20s	720-960pcs	5760-7680pcs
Hollow block		400x150x200mm (6 inches)	6pcs	15-20s	1080-1440pcs	8660-11520pcs
Hollow block		400x100x200mm (4 inches)	8pcs	15-20s	1440-1920pcs	11520-15360pcs
Solid block		240x115x53mm	24pcs	15-20s	4320-5760pcs	34560-46080pcs
Color paver		225x112.5x60mm	12pcs	18-25s	1728-2160pcs	13240-17280pcs
Color paver		200x100x60mm	14s	18-25s	2016-2520pcs	16128-20160pcs

PLD1200 batching machine:Model: PLD1200
Weigh bucket capacity:1200L
Productivity :56M3/H
Batching precision:±1%
Max weighing capacity:3000
Number of material matching:3
Work loading height:3000
Dimension:9000*2200*3500

JS750 mixer:
Charging capacity :1200L
Discharging capacity:750L
Production capacity:≥35 M3/H
Max Aggregate Diameter:≤40/60 MM
Mixing vane rotation speed:30.5r/min
Mixing vane quantity:2x7
Weight:4500 KGS
Dimension:5980*2300*6260mm
Stacker:
Lifting motor:1.5KW
Moving motor:1.5 KW
Weight:1500 kgs
Stacker layer:4 layer
Diamension:2500x1800x2300mm
Cycle:15-20 seconds
Rail shape:triangle shape
Our the other products

Certifications
Our blocks bricks making machine have been certificated by CE, ISO SGS international certification company.
In order to prevent theft of certificate, pls contact me for clear certificate photos. All our machine have been certificated by CE(EUROPEAN COMMUNITY), ISO9001-2008, SGS, ERP

Our customs and reviews

In order to prevent theft of photos, pls contact me for clear customer photos. we have customers from all over the world. Packaging & Shipping

Company Profile

FAQ
1. where to find reliable and direct factory for block machine ?
---Shandong hongfa have more than 33 years rich experience in block machine manufacturing. welcome your visit.
2. Do you have ready machine in stock ?

--- we do have stock, but almost all our molds need customized according to local size requirements.
3. Do you have branch office in my country ?
--- until now we have distributor in Uz and Algeria etc. contact us if you need their contacts.
4. If my machine break down how to do ?
-- Contact Tina let us help to find the problem, and we can send spare parts to restart your machine.
5. I have no experience, how to install the block machine and how to change molds ?
--we have instruction books and video to teach you , if not workable, we will send engineers to your land for training.
6. HOW to pay ? is my money safe ?
---- yes dear your money is protected by the made-in-china platform. you can pay by TT BANK or LC at sight.
