L3 Managed 24 Ports 10/100/1000Mbps RJ45+4 Ports 10g Uplink Network Poe Switch

Product Description

Fibridge F2S900PX-244 series network switch is a high-performance Ethernet access Managed equipment developed by Beijing Fibridge. It has 24* 10/100/1000 Mbps PoE Ethernet interface and 4* 10Gigabit FX ports.
With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display.
The series is layer 3 switch, can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.
The device is built-in power module, you can choose 220V AC input or 36-72V DC input, support PoE+. The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is -20ºC to +45ºC,10%~90(no condensation).
Product Features Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p storage-and-forward
MAC static configuration and dynamic learning, IEEE802.1AE Macsec security control
Support VLAN,GVRP,QinQ,voice VLAN;
Support STP/RSTP/MSTP/EAPS/ERPS
Support IGMPv1/2/3 and MLDv1/2 Snooping
BVSS Virtual Industrial Cluster
Support IPv4/IPv6
Support static routing, RIP, OSPF dynamic routing, VRRP
Support DHCP
Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL
Support QoS, flow classification, CAR flow limit/monitor/shaping, DSCP
Support safe visit control, prevent DDos support RADIUS/TRCACS+
Support port isolation, port security, IP+MAC+ port bunding
Support IEEE802.1X certificate
Support static/LACP link aggregation, UDLD, OAM, ISSU
Support ZTP zero-touch configuration, Web/Console/Telnet/SSH2.0
Support SNMP V1/V2.V3;
Support TFTP upload and download management
Support RMON;
Obtain network qualification certificate

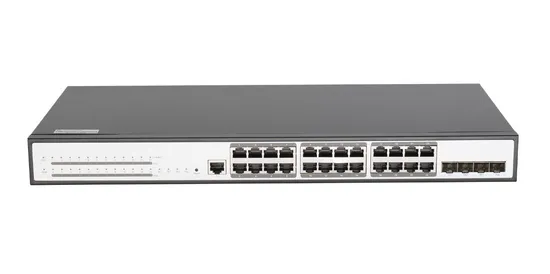

Detailed Photos

Product Parameters

Network Characteristics
Ethernet Protocol	Support 802.3i/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p/802.1d storage-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 10GBase-FX Single/multimode SFP+ optical port ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	IEEE 802.1q VLAN, protocol VLAN, Voice VLAN
MAC Addresses	16K
Jumbo Frame	Max 12K
Cache	64Mbit
Packet Buffer	336Gbps/3.36Tbps
Packet Forwarding Rate	124Mpps
Management	WEB, Telnet, Console, SNMP
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -20ºCto +45ºC Storage temperature: :-40ºC to 85ºC Working humidity:10%~90% RH No condensation Storage humidity: 5%~90% RH No condensation Altitude: 3000 meters
Power	AC 100-240V/50-60Hz embedded switch power DC-36 to -72V external DC power
MTBF	≥100000 hours
MTTR	< 1 Hour
Mechanical characteristics
Dimension	440×180×44mm
Weight	3.6kg
Power consumption	<30W

Ordering Information

Model	Port	Management
F2S900PX-244	24*10/100/1000M Ethernet PoE ports 4*10G SFP optical ports	Web Telnet Console SNMP

Business Terms Price is FOB Beijing. 3 years warranty.
Price doesn't include SFP modules.

About Fibridge Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc.
