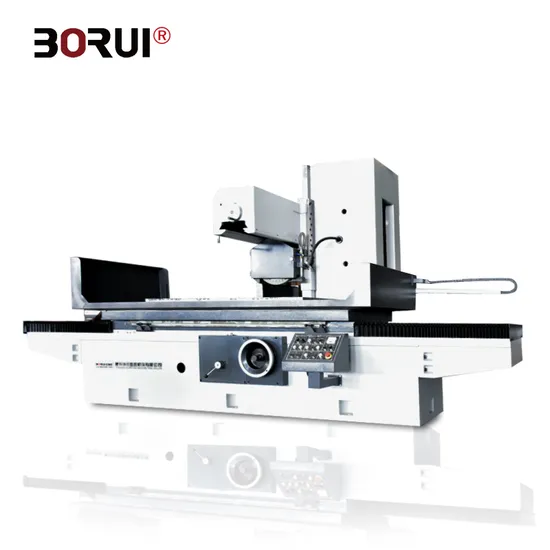

M7170 Economic Flat Surface Manual Feed Grinder Grinding Machine for Steel
| US$29,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7170
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
M71 Series Grinding Head Moving Surface Grinding M
Model
M7170
Grinding Wheel Size
400*50*203
Table Size
700*1250, 700*1600, 700*2200
Max. Load Capacity
1100, 1400, 1800
Machine Tool Weight
5600, 6600, 7200
Max. Longitudinal Travel
1350, 1700, 2300
Min. Longitudinal Tra
200
Table T Slot No*Width
3*22
Transport Package
The Machine Willi Be Packed in Plywood Case.
Specification
2350*2030*2050
Trademark
BORUI
Origin
Shan Dong
Production Capacity
500
Product Description
M7170 Economic Flat Surface Manual Feed Grinder Grinding Machine For SteelProduct Description
STRUCTURAL FEATURES:
The machine tool adopts the t-type layout form, the guide rail on the column is equipped with a drag plate, the middle position of the guide rail is equipped with a vertical feed mechanism, the transmission accuracy is high, the interchangeabil- ity is good, the cross joint is connected in the transmission process, can compensate the center error of the lead screw and the reducer shaft. Closed hydraulic system is adopted for the movement of the worktable. The front and rear feed can be manually fed, the hydraulic feed can be automatically fed, and the lead screw can be fed automatically intermittently driven by a variable frequency motor. Adopt high strength cast iron foundation, grinding head spindle adopt bobbin or high rigidi- ty sleeve structure, the machine overall rigidity is strong, the quality is stable, the operation is stable.
Product main technical specifications:
| Model | Table size(WxL) mm | Max.size to be ground mm | Max.load capacity (include permanent magnetic chuck) kg |
| M7130A | 300×1000 | 300x1000X400 | 470 |
| M7130B | 300x1000 | 300×1000X800 | 900 |
| M7130C | 300x1000 | 300X1000X1200 | 1170 |
| M7140 | 400x1000 400x1600 400×2200 | 400x1000X400 400x1600X400 400×2200X400 | 630 1000 1380 |
| M7150A | 500x1000 500x1600 500×2200 | 500×1000×500 500×1600×500 500×2200×500 | 700 1240 1410 |
| M7160 | 600x1000 600x1600 600×2200 | 600x1000×400 600×1600×400 600×2200×400 | 850 1150 1500 |
| M7170 | 700x1250 700x1600 700×2200 | 700×1250×500 700x1600×500 700×2200×500 | 1100 1400 1800 |
| M7180 | 800×1600 800×2200 800×3000 | 800×1600×500 800×2200×500 800×3000×500 | 1600 2000 3000 |
