10tubes to 36tubes Compact Pressure Stainles Steel SUS201 Solar Water Heater (Hot Sales)

10tubes to 36tubes Compact Pressure Stainles Steel SUS201 Solar Water Heater (Hot Sales)

US$800.00
1-99 Pieces
US$200.00
100+ Pieces

Basic Info.

Model NO.
ILH-5818S470S-36H
Pressure
Pressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Water Tank, Heat Pipe Vacuum Tubes, Bracket
Certification
CE, ISO9001, CCC, En12975, Og-100
Item Name
Outdoor Inox Solar Water Heater
Capacity
20 Us Gallon ~ 70 Us Gallon
Vacuum Tube Size
58/1800mm, 47/1800mm, 47*1500mm
Vacuum Tube Coating
Tri-Target Coating
Insulation Material
High Density Polyurethane Foam
Inner Tank Material
SUS304 or 316L
Outer Tank Material
High Quality Inox
Working Ambient Temperature
-40c ~ 60c
Max Working Pressure
0.7 MPa
Qualtiy Warranty
5 Years
Transport Package
Inner Styrofoam with Outer Export Carton Packing
Specification
CE, ISO9001: 2008, CCC
Trademark
INLIGHT/ OEM
Origin
China
HS Code
8419191000
Production Capacity
5000 Sets/ Month

Packaging & Delivery

Package Size
300.00cm * 49.00cm * 50.00cm
Package Gross Weight
35.000kg

Product Description

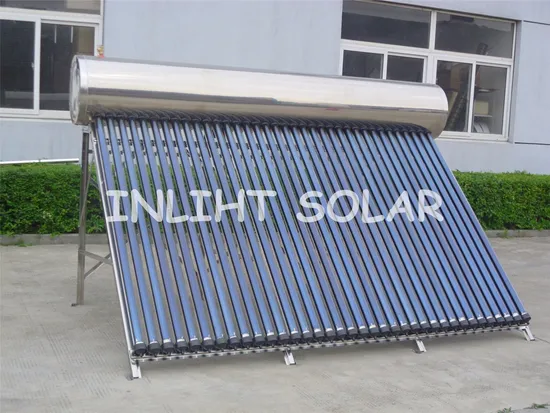

36tubes Stainles Steel SUS201 Solar Water Heater (Hot Sales)
Key advantages
1. Professional manufacturer with 18 years experience,good technical support;
2. CE approved, good quality, high heat efficiency;
3. Short and punctual delivery time;
4. Easy installation and free maintenance;
5. OEM and OEM order is acceptable;
6. Offer samples for Evaluation;
Products details and specification:
Item No. Water Tank Solar Vacuum Tube Insulation Packing Container Loading
Capacity (Gallon) Qty / Pcs Size / mm mm cbm/set 20GP 40HQ
ILH-5818S470S-12H 22 12 Φ58*1800 55 0.45 63 154
ILH-5818S470S-15H 28 15 Φ58*1800 55 0.53 53 130
ILH-5818S470S-18H 33 18 Φ58*1800 55 0.64 44 107
ILH-5818S470S-20H 38 20 Φ58*1800 55 0.70 40 99
ILH-5818S470S-24H 45 24 Φ58*1800 55 0.80 35 86
ILH-5818S470S-30H 55 30 Φ58*1800 55 1.02 27 68
ILH-5818S470S-36H 70 36 Φ58*1800 55 1.18 24 58
1. Inner tank: Food-grade stainless steel SUS304-2B or SUS316L with 1.2mm-1.5mm thickness
2. Tank Exterior Shell: High quality Inox 0.4mm
3. Heat Insulation: High-density polyurethane integrated foam-forming insulation layer
4. Vacuum Tube: Red copper heat pipe, three-target glass tube, aluminium fin
5. Bracket: Inox or Aluminum alloy, suitable for slope and flat roof installation
6. Optional Devices :Electric heater, Intelligent Controller, Anode magnesium bar,T/P & Safety valve
7. Rated Working pressure: 6.0 Bar
8. Angle of bracket: 25°~51°
9. Anti-freezing: > -40°C
10. Package: If it is full container loading, the standard package is Seaworthy carton ;
If it is the less than container loading, the best is plywood crate and seaworthy carton combination package

Competitive Advantage:
1.Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5.No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7.Dual-purpose brackets for both flat and inclined roof
8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out
