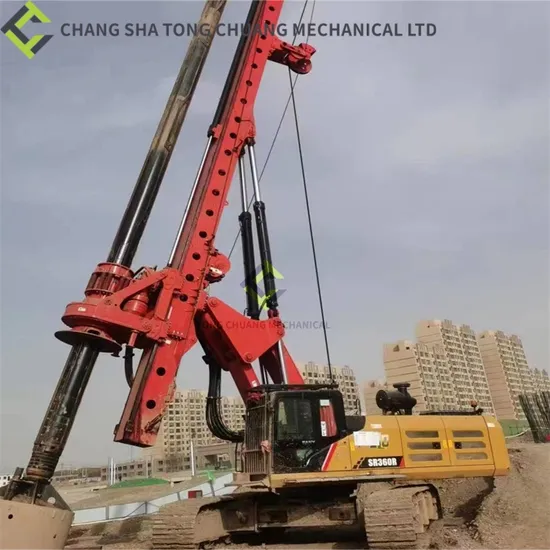

Construction Machine 2021 Sr360 Rotary Drilling Rig
| US$300,000.00-320,000.00 | 1 units (MOQ) |
Basic Info.
Model NO.
SR360
Shotcrete Type
Dry
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
Used
Color
Red
Engine Model
C-13
Engine Power
305kw/HP
Rated Speed (Rpm)
1800rpm
Maximum Drilling
2500
Total Mass of The Entire Machine
105000kg
Total Engine
12.5
Maximum Torque (N · M)
360
Origin
Changsha
HS Code
8705909000
Production Capacity
100units/Year
Product Description
Product Parameters| Machine type | |
| Type of rotary drilling rig | Track type |
| performance parameter | |
| Working weight of the whole machine (kg) | 105000 |
| Maximum drilling diameter (mm) | 2500 |
| Maximum drilling depth (m) | 90 |
| Maximum torque (N · m) | 360 |
| Drilling speed (rpm) | 5.6-28 |
| Maximum pressure (KN) | 250 |
| Maximum lifting force (KN) | 300 |
| Mast left and right inclination angle (°) | 6 |
| Mast forward inclination angle (°) | 5/30 |
| Main winch lifting force (KN) | 350 |
| Auxiliary winch lifting force (KN) | 90 |
| Maximum lifting speed of main winch (m/min) | 44 |
| engine | |
| Engine model | C-13 |
| Rated power KW (HP) | 305 |
| Rated speed (rpm) | 1800 |
| Total engine displacement (L) | 12.5 |
| Working weight of the whole machine (kg) | 105000 |
| Maximum rated total lifting capacity (t) | |
| Maximum drilling diameter (mm) | 2500 |
| Maximum drilling depth (m) | 90 |
| Maximum torque (N · m) | 360 |
| Drilling speed (rpm) | 5.6-28 |
| Maximum throwing speed (rpm) | |
| Power head length (mm) | |
| Overall dimensions | |
| Total width (mm) | 4400 |
| Total height (mm) | 23810 |
| Transport width (mm) | 3000 |
| Transport height (mm) | 3631 |
Detailed Photos
Company Profile
FAQ
1. who are we?We are based in Hunan, China, start from 2022,sell to Africa(30.00%),Southeast Asia(30.00%),Domestic Market(20.00%),Mid East(20.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?concrete pump truck,concrete mixer truck,truck crane,dump truck4. why should you buy from us not from other suppliers?In the second-hand construction machinery industry for more than ten years. Specialize in providing all kinds of construction machinery and equipment in original condition, including new and original second hand equipment.5. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,DAFAccepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese,Spanish,Arabic,French,Russian
