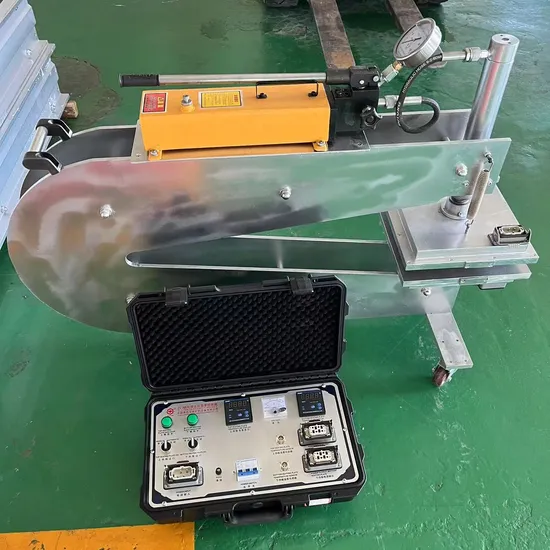

Conveyor Rubber Belt Hydraulic Spot Vulcanizing Repair Press
| US$2,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL-350*350
Certification
ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Temperature
145 Degrees
Power
1.9 Kw
Weight
145 Kgs
Pressure
2.0 MPa
Products Name
Conveyor Belt Repair Machine
Belt Width
600~2200 mm
Repair Area
300*300 mm
Hot Platen Size
350*350 mm
Core Component 1
Silicone Blanket Heating Element
Core Component 2
Electric Control Box
Raw Materials
Aluminum Alloy
Package
Wooden Box(Crate)
Delivery Time
7~15 Days
Voltage
220 V
Phase
Single
Transport Package
Wooden Box
Specification
1300 * 350 * 780 mm
Trademark
THEMAX
Origin
China
HS Code
84778000
Production Capacity
500 Sets Per Year
Product Description
| Model | Temperature(ºC) | Power(kw) | Dimensions(L*W*H mm) | Weight(kg) | Pressure(Mpa) |
| YXL-200*200 | 145 | 1.1 | 1300*200*780 | 145 | ≤ 2.0 |
| YXL-250*250 | 145 | 1.4 | 1300*250*780 | 149 | ≤ 2.0 |
| YXL-300*300 | 145 | 1.6 | 1300*300*780 | 152 | ≤ 2.0 |
| YXL-350*350 | 145 | 1.9 | 1300*350*780 | 1163 | ≤ 2.0 |
Conveyor belt vulcanizing press is the widest used conveyor belting equipment, its only need a few steps to confirm press model. The proper model selection for a sectional vulcanizier depends on determining dimensions A and B(see diagram above)
A- the platen length(A) is calculated by adding to the belt manufacturer's recommended splice length.
6 inches(150mm) for fabrics belt
14 inches(355mm) for steelcord belt
B- the platen width(B) which includes the bias angle, it determined by adding to the belt width
6 inches(150mm) for fabric belt
8 inched(200mm) for steelcord belt
To this figure multiply by:
1.07 for 22 degree bias angle
1.05 for 17 degree bias angle
Dimensions A and B represent the outside platen dimensions. Scan down the list below until you arrive at a platen size the corresponds with your figures.
If the size you require is not listed below our Sales department will be happy to recommend a suitable size, rectangular configurations and multiple platen arrangements are also available upon request.
Specifications are subject to change without notice.
Build-in cooling device on all vulcanizer.
Total weights include electrical control panel, cable sets are set-up templates for all models.
All models include electronic fluid pressure pump
Temperature adjustable between 0-199 Degree.C
Sectional vulcanizers are build on a 18 degree bias
Custom sizes, rectangular configurations and multiple platen arrangements available on request.
