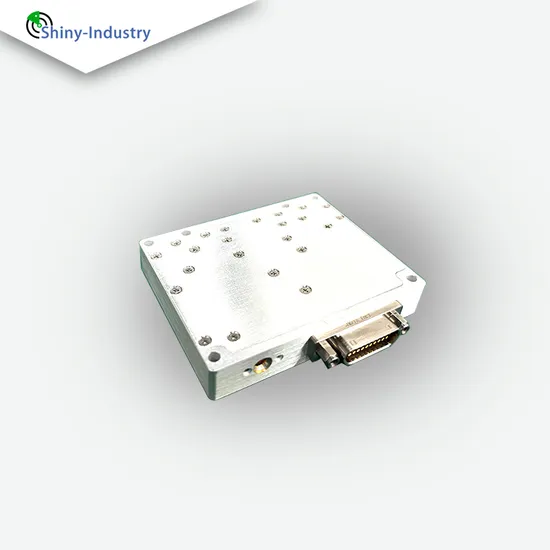

Radar Tr Component/Accessory/Radar
| US$170.00-225.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RS8000As
Type
Adapter
Application
Industry, Special Equipment
Usage
Security Warning and Protection
Certification
ISO
External Interfaces
Rj-45
Power Consumption
≤30W
Communication Protocol
TCP/IP
Transport Package
Aviation Box Packaging
Specification
X Band
Trademark
OME acceptable
Origin
China
HS Code
8526109090
Production Capacity
100pieces/Year
Product Description
functionThe X-band four channel TR module mainly implements the following functions:
Each TR module contains 4 TRs, 1 common port, connecting the transmission excitation signal and the reception signal; Four interfaces for connecting antennas and docking with antennas. The module schematic is shown in the following figure.
TECHNICAL INDEX
| Launch channel indicators | Peak power output of each T/R transmission: ≥ 0.5W |
| Technical indicators of receiving channel | 1) Receive single channel gain (low noise amplifier): 25 ± 2dB (phase shifted attenuation zero state) |
| figure | 2) ≤ 3dB, high and low temperature noise coefficient: ≤ 3.5dB |
| Operating Frequency | X-BAND |
| digital attenuator | 6-digit LSB=0.5dB |
| Digitally Controlled Phase Shifter | 6bit LSB=5.625° |
| External dimensions | 69.5mm×30mm×55mm |
| weight | ≤100g |
