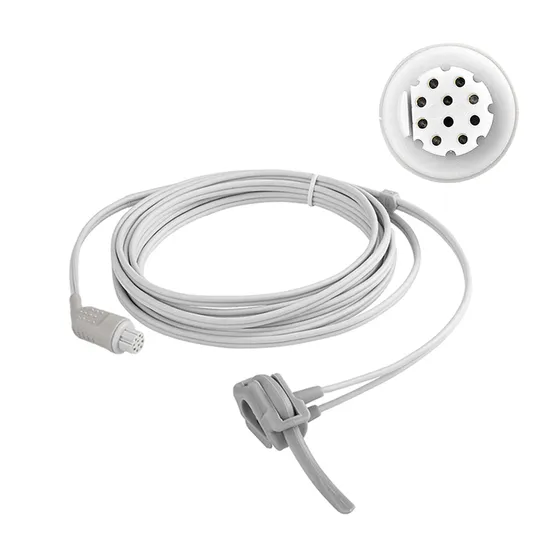

Ge-Med Datex 10 Hole Neonate Wrap Reusable SpO2 Sensor 10 FT

Product Description

Product Description

Product Name			Module Number
Datex 10 hole Adult clip SPO2 sensor			J28S001B
Datex 10 hole Adult soft SPO2 sensor			J28S001S
Datex 10 hole Neonate Wrap SPO2 sensor			J28S005E
5 different types for below each series available: adult clip, pedia clip, adult soft, pedia soft, neonate wrap.

GE-Med Datex 10 hole Reusable SpO2 Sensor 10 FT
Compatible with AS/3,C/3 Cardiomac Light Monitor Satlite Oscar
Operation principle, function and structure The patient sensor end of the product is clamped the patient's index fifinger with (Thumb, middle
fifinger or others, great toes), and the device connector is connected to compatible monitors or
oximeters with SpO2 extension cord. The product adopts 660nm red light and 905nm Infrared light as
incident light source, tests light intensity through tissue to obtain SpO2 value as well as pulse rate. Specification
Measurement wavelengths and Output Power: Red:660±5 nm @ 2.0mw maximum average
Infrared: 905 nm±5 nm @ 2.0 mw maximum average Oxygen Saturation Declared
Accuracy Range: ±3% of 70%~79% spo2; ±2% of 80%~89% spo2; ±1% of 90%~100% spo2;
Pulse Rate Range: 30~245 BPM;
Accuracy: ±3%bpm of 150 bpm~245 bpm; ±2 bpm of 60 bpm~149 bpm; ±1% bpm of 30 bpm~59 bpm
Response Time: ≤30s Detailed Photos
