High Capcity DIP Lead-Free Wave Soldering Euipment/ PCB Soldering Machine

Product Description

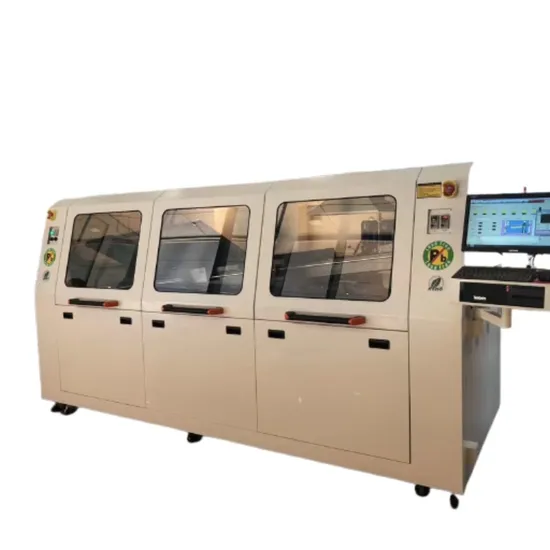

High Capcity DIP Lead-free Wave Soldering Euipment/ PCB soldering machine
INTRODUCTION:
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4.Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC. 5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board. 6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
7.Lead-free solder furnace with independent design, environmental protection and safety,e asy to clean.
8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control. 9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
10.With black box memory function, the machine can always store the production management records, improve work efficiency.
11.Automatic claw cleaning function ensure the cleanliness of claws.
12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
13.Nitrogen Structure(optional): High accuracy Oxygen analyzer, Nitrogen consumption of 16m3/hr based on 300-500ppm.
Specification:

Model No.	JAGUAR N450
Number of heating zones	3
Length of heating zones	1800mm
Total/running power	30KW/8-11KW
Air supply	0.5MPa
Preheating method	Micro hot air
Preheating power	220V 8KW
Control method	PC +PLC
Range of temp. control	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder type	Lead-free / Sn-Pb
Solder pot capacity	400KG
Solder pot temperature	300ºC
Solder pot material	Pure titanium(standard)
Heating emitter power	380V 8KW
Solder temp. control method	PID+SSR
Wave crest drive power	1KW 220V
Wave crest height Control	Frequency converter
Warm-up time of solder	About 180mins for setting 250ºC
PCB width	60-450mm
Component clearance	Top 120mm(option 160mm) Bottom 15mm
Convey speed	0-2000mm/min
Convey height	750+/-20mm
Convey direction	L→R (R→L optional)
Convey angle	4-7 º
Convey width adjustment	Manual
UPS	Option
Nitrogen structure	Option
Flux pressure/capacity	3-5 bar/6.5L
Weight	1100KG
Power Requirement	3P5W,380/220V 50Hz 63A
Dimensions	4300(L)*1400(W)*1560(H)
