BLIIoT Cortex-A53 1.4GHz 1+8GB ARM Edge Gateway for Energy Management System

Product Description

BLIIoT Cortex-A53 1.4GHz 1+8GB ARM Edge Gateway for Energy Management System Product Description The ARMxy BL340 series is a versatile industrial ARM controller designed for flexible I/O configuration. The BL340 series is an industrial-grade controller designed based on the Allwinner Technology T507-H processor, featuring a quad-core ARM Cortex-A53 CPUwith a clock speed of up to 1.4GHz. It is equipped with 8/16GB eMMC and 1/2GB DDR4, suitable for a wide range of applications.The BL340 series ARM embedded computer offers a rich array of interfaces including 1 x 1000Mhz Ethernet port, 2 x optional 100Mhz Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series IO board, 2 x optional Y series IO boards. These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL340 also supports hardware decoding of 4K@30fps videos.Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.The BL340 series ARM embedded computers support various operating systems including Linux-4.9.170, Linux-RT-4.9.170, Ubuntu 18.04, and Android 10. Additionally, they are compatible with Docker containers and graphical interface development tools such as Node-Red and Qt-5.12.5. In addition, BL340 is compatible with BLIoTLink industrial protocolconversion software for data collection and transformation, and can seamless integrationwith various mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL340 embedded computer. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL340.The BL340 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.
Product Parameters ARMxy BL340 Model List

Model	ETH	USB	HDMI	X board IO Slot	Y board IO Slot	Dimension
BL340	1x100Mhz	2	X	1x6PIN	X	42x83x110mm
BL340A	1x100Mhz	2	X	1x20PIN	X	42x83x110mm
BL340B	1x100Mhz	2	X	1x20PIN	2	48x83x110mm
BL340C	1x100Mhz	2	X	1x10PIN	X	42x83x110mm
BL341	2x100Mhz	2	X	1x6PIN	X	42x83x110mm
BL341A	2x100Mhz	2	X	1x20PIN	X	42x83x110mm
BL341B	2x100Mhz	2	X	1x20PIN	2	48x83x110mm
BL342	3x100Mhz	2	1	1x6PIN	X	42x83x110mm
BL342A	3x100Mhz	2	1	1x20PIN	X	42x83x110mm

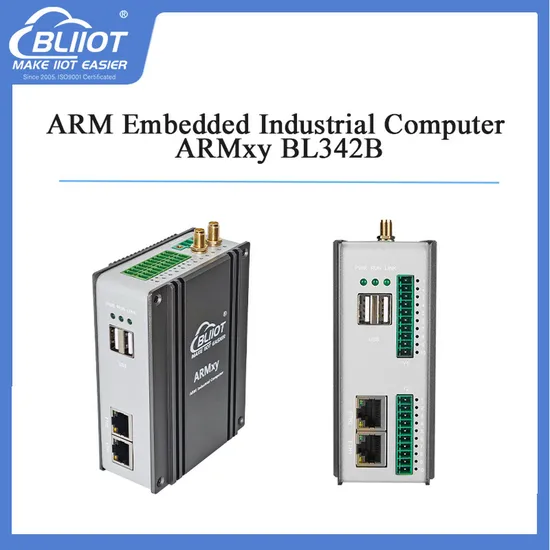

BL342B	3x100Mhz	2	1	1x20PIN	2	48x83x110mm

ARMxy BL340 SOM Model List

Model	MCU	Clock Speed	Kernel	eMMC	DDR4	Temperature
SOM340	T507-H	1.4GHz	4 x A53	8GByte	1GByte	-40~85°C
SOM341	T507-H	1.4GHz	4 x A53	16GByte	2GByte	-40~85°C
SOM342	T507-H	1.4GHz	4 x A53	8GByte	1GByte	0~70°C
SOM343	T507-H	1.4GHz	4 x A53	16GByte	2GByte	0~70°C
