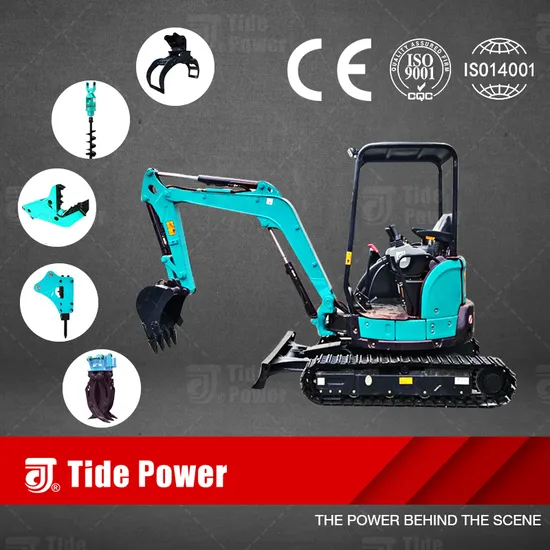

CE Approved Excavator China Mini Hydraulic Excavator Mini Digger for Sale
| US$7,200.00-8,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Tide20U
Type
Crawler Excavator
Usage
Special Excavator, Farming Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.028m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine Model
Perkins
Pressure to The Ground
32 Kpa
Pump
38.6L/ Min
Maximum Digging Force
16kn
Working Speed
Low 1.3km/H High 26km/H
Power
14.7kw
Maximum Digging Height
3825mm
Maximum Digging Radius
3630mm
Minimum Turning Radius
1522mm
Maximum Dumping Height
1850mm
Swing Speed to Platform
13rpm
Bucket Width
410mm
Operation Hydraulic Pressure
18MPa
Width of Track
230mm
Accessory Price
Additional
Transport Package
Plastic Package
Specification
2450KG
Trademark
Tide
Origin
China
HS Code
84295212
Production Capacity
2000
Product Description
High-quality Rubber And Steel Crawler CE Mini Excavator| Model | TD10 | TD12 | TD20U | TD25U | TD30U |
| Dimensions | |||||
| A- Overall Length | 2770mm | 2550mm | 3550mm | 3870mm | 4010mm |
| B- Overall Height | 1000mm | 1500mm | 2200mm | 2360mm | 2360mm |
| C- Overall Width | 925mm | 870mm | 1320mm | 1420mm | 1540mm |
| D- Track Width | 180mm | 180mm | 250mm | 250mm | 250mm |
| E- Platform Turning Radius | 1330mm | 1330mm | 730mm | 645mm | 710mm |
| F- Length of Track | 1210mm | 1200mm | 1650mm | 1895mm | 1895mm |
| G- Sprocket to Idler Centres | 910mm | 910mm | 210mm | 250mm | 250mm |
| H- Between Undercarriage and Ground | 380mm | 380mm | 210mm | 250mm | 250mm |
| I- Between Boom and Ground | - | - | 1320mm | 1340mm | 1380mm |
| J- Width of Platform | 896mm | 896mm | 970mm | 1350mm | 1350mm |
| L- Between Platform and Ground | 380mm | 380mm | 480mm | 480mm | 480mm |
| 20FT Load | 4 Sets | 4 Sets | 4/2 Sets | 2 Sets | 2 Sets |
| 40GP Load | 8 Sets | 8 Sets | 8/4 Sets | 4 Sets | 4 Sets |
| Performance | |||||
| Engine Model | KOOP | PERKINS 403D-11 | |||
| Power | 8.6kW | 14.7kW/2200Rmp | |||
| Operation Pressure | 16Mpa | 16Mpa | 18Mpa | 21Mpa | 21Mpa |
| Max. Digging Force | 7.2KN | 7.2KN | 12KN | 17.6KN | 18.2KN |
| Gradeability | 30° | 30° | 30° | 30° | 30° |
| Ground Pressure | 32Kpa | 32Kpa | 32Kpa | 26Kpa | 26Kpa |
| Travel Speed | 2Km/h | 2Km/h | 2.7Km/h | 2.3-4.1Km/h | 2.3-4.1Km/h |
| Pump Flow Rate | 21.6L/min | 21.6L/min | 2*17.6+6.6L/min | 28L/min | 28L/min |
| Platform Swing Speed | 12rpm | 12rpm | 13rpm | 13rpm | 13rpm |
| Bucket Capacity | 0.028m³ | 0.06m³ | 0.07m³ | 0.08m³ | 0.09m³ |
| Bucket Width | 410mm | 410mm | 450mm | 500mm | 550mm |
| Boom Swing | - | - | 45°Left/78° Right | ||
| Overall Weight | 800Kg | 800Kg | 1930Kg | 2450Kg | 2650Kg |
| Operating Dimensions | |||||
| A-Max. Digging Height | 2650mm | 2650mm | 3300/3825mm | 3744/4335mm | 3865/4510mm |
| B- Max. Dumping Height | 1850mm | 1850mm | 2360mm | 2670mm | 2760mm |
| C- Max. Digging Depth | 1650mm | 1650mm | 2200/2405mm | 2200/2486mm | 2580/2710mm |
| D- Max. Digging Radius | 2900mm | 2900mm | 3975mm | 4155mm | 4375mm |
| Powerful and reliable Perkins/Yanmar engine delivers superior horsepower and performance in a compact size to help you work in the limited space. Imported hydraulic system & pilot operation levers provide smooth control and easy operation. A range of tools is matched to the excavator to optimize performance and deliver excellent value through high productivity. | |||||
