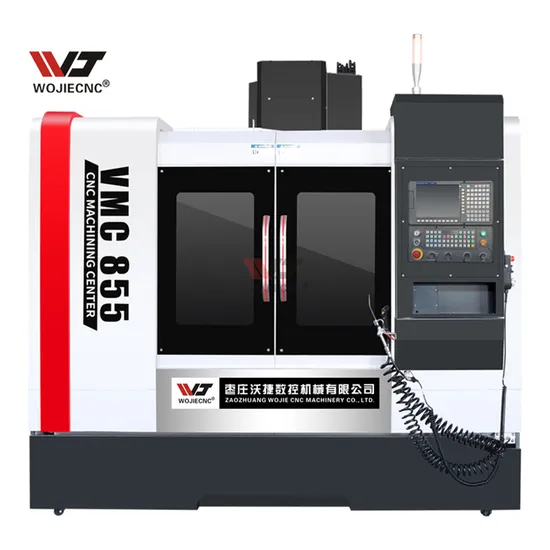

Hot Sale Chinese 3 4 5 Axis Vmc855 Aluminum CNC Milling Machine Center Machining Services CNC Vertical Machining Center for Metal

Product Description

Product Description
VMC series machines are widely used in many industries, including but not limited to the following fields:
1. Automobile manufacturing industry: Machining centers are widely used in the processing of automobile parts, such as engine parts, gearbox parts, chassis parts, etc.
2. Aerospace industry: The aerospace field has very high requirements for the precision and quality of parts, and machining centers can meet the high-precision machining needs of complex parts.
3. Electronic communication industry: Machining centers can be used to process various precision electronic components, communication equipment parts, etc.
4. Mold manufacturing industry: Machining centers can be used to manufacture various types of molds such as plastic molds, die-casting molds, stamping molds, etc.
5. General machinery manufacturing industry: Machining centers can meet the processing needs of various mechanical parts.
Product Parameters

specifications	unit	VMC855
Table size	mm	1000x550
X axis travel	mm	850
Y axis travel	mm	550
Z axis travel	mm	550
Distance between spindle center and column surface	mm	632
Distance between spindle nose and table surface	mm	110-660
T slot		3-18*100
Spindle taper	mm	BT40
Max. spindle speed	r/min	8000(10000 optional)
Main motor power	kw	7.5
X/Y/Z axis servo motor torque	N.M	15/15/18
X/Y/Z motor connection		direct
X/Y/Z guide rail form		3 axis linear guide rail
Max.table load	kg	600
Automatic tools changer		24 arm type
Max.tool weight	kg	8
Max. tool length	mm	250/350
Max. tool diameter	mm	100(Adjacent)/150(Apart)
X/Y/Z axis rapid traverse	M/min	24/24/20
Cutting feed speed	M/min	10
Position accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Machine dimension	mm	2900x2400x2750
Machine weight	kg	6500

Detailed Photos

Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin	Automatic tool changer Standard configuration: 16-tool hat-type tool magazine Optional configuration: 24-tool arm-type tool magazine
Spindle Taiwanese brand high-quality spindle, VOLIS/OKADA/ROYAL/AIMACH, etc. Standard configuration: 8000 rpm Optional configuration: 10000/12000 rpm	Workbench High-frequency quenching for better rigidity
3-axis linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.	Lead screw 3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming
Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming.
Electrical part Standard configuration: DELIX Optional configuration: Siemens	Heat dissipation device Standard configuration: Electrical cabinet heat exchanger Optional configuration: Electrical cabinet air conditioner

Optional Accessories

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
