Hot Sale Cement Grout Mixer with Agitator Machine for Construction

Product Description

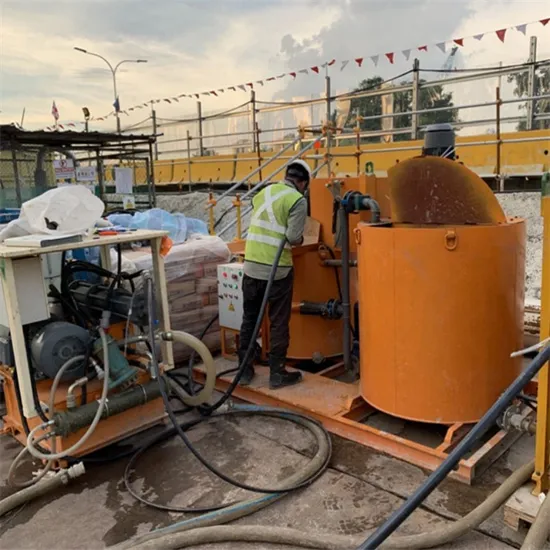

Product Description DMA500-1000E Cement grout mixer with agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. lt can fast mix water, cement and additive, then the mixed slurry can be stored into a 1000 liters agitator, thus the mixing work can continuously be done.
Product Parameters

Model	DMA500-1000E
Mixer tank capacity	500L
Acceptable W/C ratio	≥0.5:1
Motor brand	Siemens
Mixer Motor Power	1.5kw
Mixer rated Rev.	34rpm
Mixing pump	Centrifugal pump
Pump motor power	3kw
Pump Rated Rev.	2950rpm
Water tank	200L
Feeding height	1065mm
Agitator tank capacity	1000L
Agitator Rated Rev.	35rpm
Agitator motor power	1.5kw
Electric control box	Schneider electronic Components
Dimension	2550*1425*1860mm
Weight	960kg

Detailed Photos
Packaging & Shipping
Application
Company Profile Zhengzhou Sinogrout Machinery Co., Ltd. Located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on R&D, production and sales of mining, tunnel construction and bridge construction equipments and so on.Our products include mud pump, shotcrete machine, robotic shotcrete system with arms,hydraulic grouting pump, grout mixer and agitator, concrete pump, hydroseeding machine,etc.We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.Our products are widely recognized and trusted by domestic and foreign Customers; And have been exported to more than 50 countries and regions in the world, including: Germany, Singapore, USA, Russia, Vietnam, Myanmar, Malaysia, South Africa, Brazil, India and other countries, and win the good reputation of the clients all over world with reliable service. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.
FAQ 1.Q: What is the guarantee period of grouting mixer?
A: It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine when delivery.
2.Q: What is your project with grouting mixer?
A: Working with grout pump, such as Waterproofing,Floor restoration,Metal door and window frames, Sealing joints, Connecting prefabricated concrete sections,Filling voids and eliminating holes in concrete blocks, Tiling, Levelling sidewalk slabs or Manhole and sewer linings, we can recommend suitable pump and mixer for your project.
3.Q: What is the tank capacity of your grout mixer?
A: The tank capacity is from 80L to 8000L, even we can custom size as per your request. For the grout mixer, we have high speed grout mixer, mixer and agitator, Horizontal screw mixer for clay and thick slurry, mortar.
4.Q: What is the principle of your hydraulic grouting pump?
A: The principle of our hydraulic grout pump is similar with TECHNIWELL grouting pump, when you use this grouting pump to grout to fill underground cracks, when the grout pump working, grouting into the underground cracks, if you set on 10Mpa, when the local crack filled, the underground grouting pressure will increase to 10Mpa, the grouting pump will stop and stop grouting. Output is also change according to the pressure when pump working.
5.Q: What is the after-sales service?
A: We could supply wear parts together with machine when delivery. The operation video and instruction file will send to you once you buy our machine.When using the machine, if you have some questions, our engineer also can guide you through the video to help you to solve the problem.
