Z3050X16 Hydraulic Mechanical Metal Radial Drilling
| US$8,800.00-9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050X16
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Cone
5
Spindle Travel
315mm
Max.Drilling Dia
50mm
Weight
3500kg
Transport Package
Wood Packaging
Specification
2500 * 1070 * 2840mm
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2500.00cm * 1070.00cm * 2840.00cm
Package Gross Weight
3500.000kg
Product Description
Z3050X16 Hydraulic Mechanical Metal Radial Drilling| SPECIFICATIONS | Z3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 320-1240 |
| Distance between spindle axis and column surface (mm) | 350-1640 |
| Spindle travel (mm) | 315 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 25-2000 |
| Spindle speed step | 16 |
| Spindle feeding range(r.p.m) | 0.04-3.2 |
| Spindle feeding step | 16 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 3500 |
| Overall dimensions (mm) | 2500×1060×2800 |
Product Description
The main performance characteristics:Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed

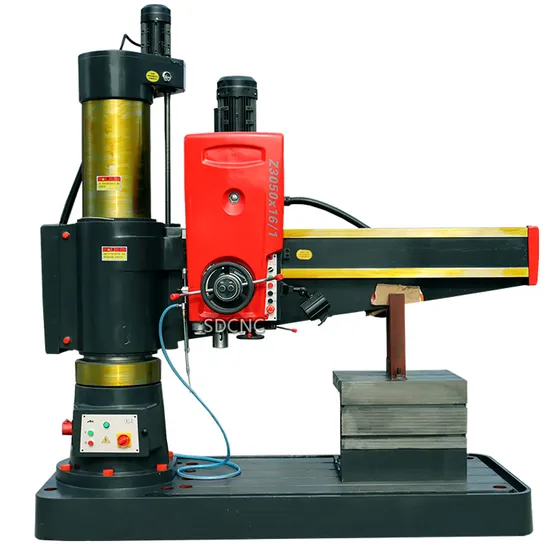

Detailed Photos
Product Parameters
| SPECIFICATIONS | Z3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 320-1240 |
| Distance between spindle axis and column surface (mm) | 350-1640 |
| Spindle travel (mm) | 315 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 25-2000 |
| Spindle speed step | 16 |
| Spindle feeding range(r.p.m) | 0.04-3.2 |
| Spindle feeding step | 16 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 3500 |
| Overall dimensions (mm) | 2500×1060×2800 |
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
