Textile Fabric Hf-851L Single Pump 2 Nozzle Weaving Machine Water Jet Loom

Product Description

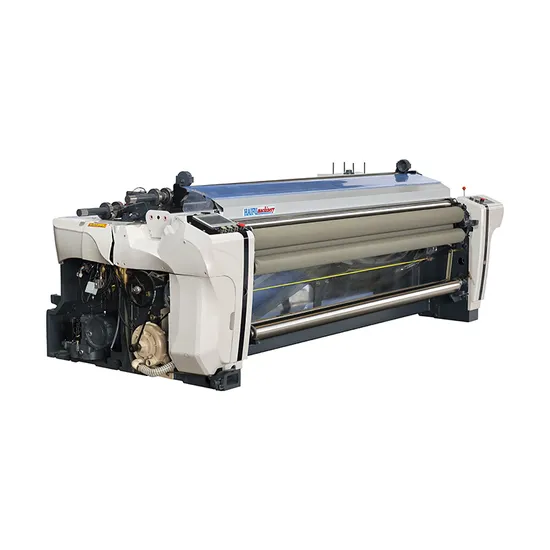

HF 851L Single-Pump 2-Nozzle Water jet loom
HF851L series high speed heavy duty water jet loom is optimization of body and motion parts of heavy duty water jet loom, where beating system is improved, vibration and noise are reduced, while body rigidity and stability are enhanced.
It is more suitable to weave fabric at high speed.
All bearing are imported from GemmerFAG, Japan NSK
Imported Nozzel, water pump, spring one-way valve enhances the bunding of water spray
HF Loom Lord wallboard adopts high grades cast iron, Seamless steel pipe Kingpiece-solid frame, vibration noise reduction
The machine is stably, the efficiency high, the service life long spraying of water loom

Working range	Polyster yam
Reed width	Nominal 150 170 190 210 230 260 280 Useful reeding width: reduce 0-60 cm
Filling selection	1 color 2 color at will
Weft density range	6-60pick/cm
Motor	3.5kw, 4.6kw selected according to the certain model
Shedding	Plain type 2-8pcs heald frame Positive cam machine, 4-10pcs heald frame Dobby(mechanical), upper negative dobby or electronic dobby, 2-16 heald frame (according to customer' s demands)
Let-off	Electronic let off-ELO Mechanical let-off Flange diameter: 800mm
Take-up	Mechanical take-up Electronic take-up Upper and down temple(according to the varity of fabric)
Waste filling removel	Mechanical take-up 3 roller
Cutter	Mechanical cutter
Operation	START - DRIVEN BY RUSH START MOTOR. STOP BY ELECTROMAGNETIC BRAKE AT PRGRAMMED POSITION ARRANGE, RUN, FORWARD INCHING, REVERSE INCHING, PROGRAMMED POSITION STOP AFTER ONE CYCLE REVERSE ROTATION
Beating	CRANK BEATING, SWORD BEATING SYSTEM OIL BATH LUBRICATION SYSTEM
Filling insertion	SINGLE PUMP (PLUNGER TYPE SPRING PRESSURE SYSTEM) DOUBLE NOZZLE (NEEDLE TYPE CERAMIC ) STBILIZER SYSTEM FEELER - IR FEELER OR OPF FEELER, USING OPTICAL CABLE
Yarn package stand	Floor mounted horizontal stand for-4package
Catch cord	Spindle twisting system
Temple	Top mounted, 2 barrel type with 2ring each

Production Process
Company Profile
Qingdao Haifu Machinery Manufacture Co., Ltd. is specializing in manufacturing and supplying water-jet loom.
In the past 15 years, Haifu machinery has supplied world wide approximately 89000 sets of water jet loom machine, and it was among the first facotry in China making water jet loom, the company now has two facotries, one in Qingdao, the other one in Siyang, jiangsu province, haifu machinery is making sure all the machine given to the customer are at the same quaity, same best quality, we are not only focus on the price, but we are also focus on our brand name, we believe that with our quality always insured, customer will sees it and come back to us with more customers.
Our machine now is running in Uzibekistan, Mexico, India, Turkmenistan, Pakistan. Every one of our customer was atractted by the way we make machines and decided to buy, and of course, satisfied with our machine and try to buy more.
