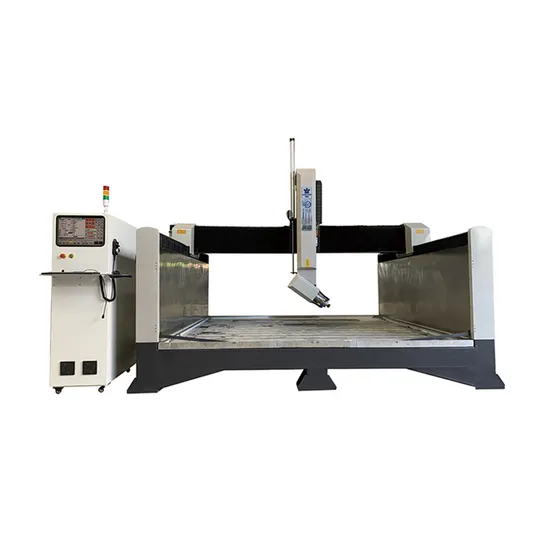

24000 Rmp Stone CNC Router Engraving Machine with CE Certificate

Product Description

24000 RMP Stone CNC Router Engraving Machine with CE Certificate
Want to create beautiful works efficiently and accurately? Jinzuan four-axis engraving machine on the right! It is equipped with a powerful four-axis linkage system, which can easily cope with complex carving tasks and achieve multi-angle fine processing. High-precision transmission components and advanced control system ensure accurate positioning and minimal error. Fast operation speed, smooth operation, greatly shorten the processing cycle.
Golden Diamond Machinery Co. LTD as the industry reliable brand, strict quality control, perfect after-sales. Choose it to start the journey of efficient carving immediately.

Product Number	3015BT
Platform Dimensions	3000*1500mm
Working Size	1400*2400mm
Feed Height	≤600mm
Air Speed	15m/min
Processing Speed	12m/min
Spindle Power	5.5-7.5kw/Motorized spindle
Spindle Speed	6000-24000 rpm/min
Motor	AC digital servo motor
Reducer	JZ8098
Operating Voltage	AC220V/50Hz/AC380V/50Hz
Engraving Tool	Φ6/8/10/12/14/16mm
File Format	G code/HPGL
Positioning Accuracy	±0.02mm
Repeatability	±0.01mm
Control System	Taiwan LNC
Machine Dimensions	4300*2300*2300mm
Weight	3200kg

1.(180°):The machine head of this unit can swim 180°, effectively solving the problem of carving large angles on curved stone and flower caps.
2.(2C):CNC digital control system with power-off memory function, featuring power-off and tool-break resumption capabilities.
3.(3 advantage):Utilizes branded full-servo motors and reducers, providing fast speed, high precision, and constant power spindle motor with high cutting force .
4.(4 tons):The entire machine adopts a steel structure with good steel properties, resistant to deformation. The machine's load-bearing can exceed 4 tons.
Application:
* Bas-reliefs
* Line engraving Cutting, Edge inversing
* Funeral tablets/gravestones, Milestones
* Commemorative plates
* Furniture, Fireplace.
* Countertops, Sink hole, grooving, shower trays
* 3D engraving, Roman column, column cap & base

Focusing on R&D, manufactureing, sales and technical services for 10 years.
Pre-sales: * Consulting support
* Ccording to customer requirements to install the machine
* Visit the factory
After sale: * Machine installation and use instructions service

Our company has become a domestic CNC engraving machine production and export volume of enterprises. Strong engraving machine in China has been in a leading position,and one time through IS09001,CE certification, ROHS certification an bv certification.
Packaging technology requirements are mainly rust, moisture, pressure, impact resistance, suitable for storage, transportation and sales. Equipment is fully protected and boxed before shipment from the factory to ensure that it is in a non-damaged condition upon arrival at the site.
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time.
Shipping date from Xiamen port to your port need to be check.

3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer & exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat,facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
