Multi Jet Dry Type Water Meter Class C/R160 (Plastic or Brass)

Product Description

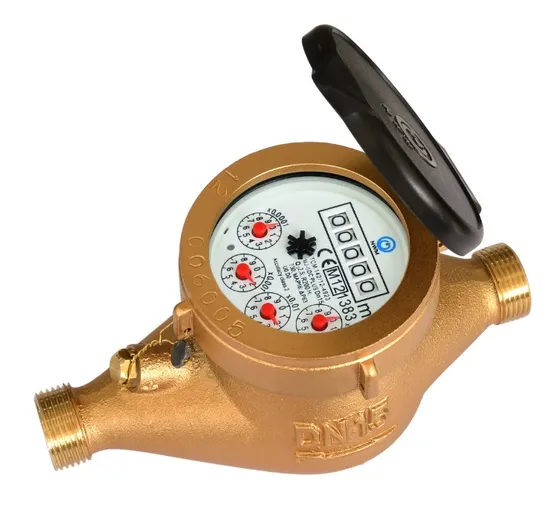

NWM MJ-SDC PLUS is IMPELLER (turbine) high sensitivity water meter with magnetic transmission, dry type register for residential application with sizes from Dn15 to Dn20 designed and manufacture by NWM and meets to the requirements of Directive 2004/22/EC on measuring instruments; The European Standard EN14154+A1+A2: Water Meter; The International Organization of Legal Metrology OIML R-49: 2006(E): Water meters intended for the metering of cold potable water and hot water or accordance with ISO4064 Standard
CHARACTERICS:
All the Materials in contact with water, consciously selected by the known resistance to corrosion;
Cold water meter under current standard for lower than 30ºC(T30), but NWM MJ-SDC PLUS can be used safely in water temperature up to 50ºC(T50);
The indicator register is of 5 Rollers and 4 Pointers; The register with7 Rollers and 2 Pointers as option
The Impeller is the only moving parts in contact with water permitting the most reliable;
The inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
The conception of the Magnetic Protection to against the external influences;
The highest sensitivity dry type water meter;
Non Return Valve to avoid the reserve flow Rate AS OPTION;
Able to equip with pulse output emitter or wirelss module for AMR / AMI application
