Intelligent Corn Flake Forming Machine Grosper Flaking Mill Machine Flaker FC6125f

Product Description

Type	Model	Capacity(T/D)	Flake thickness(mm)	Roller size(mm)	Power(kw)	Dimensions (mm)	Weight(T)
Corn flaking mill	FC7175SF	240	1.2-2	711*1750	110/132*1+2.2+1.1	3200*2500*1900	16.7
	FC7150SF	200	1.2-2	711*1500	110*1+2.2+1.1	3000*2500*1900	15.5
	FC7150F	200	1.2-2	711*1500	55*2+2.2+1.1	2700*2500*1800	15
	FC6150F	160	1.2-2	600*1500	37*2+2.2+1.1	2600*2200*1750	8.5
	FC6125F	120	1.2-2	600*1250	30*2+2.2+1.1	2300*2100*1650	6.5
	FC6100F	70	1.2-2	600*1000	22*2+2.2+1.1	2000*2100*1650	6.1
	FC6060F	50	1.2-2	600*600	15*2+2.2+1.1	1500*2100*1530	4.2
	FC4150F	100	1.2-2	400*1500	22*2+2.2+1.1	2350+1240+1870	4
	FC4080F	50	1.2-2	400*800	15*2+2.2+0.75	1550*1240*1870	3

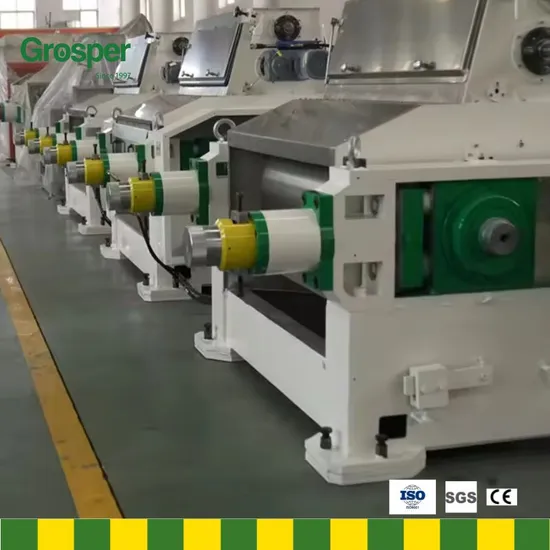

FC6125F
1: FC series corn flaking machine is one of the main equipment for producing steam corn flakes. 2: The layout of this series of corn flakers is reasonable and compact, reducing the space.
3: The whole machine adopts fully enclosed, stainless steel structure.
4: We use China's first heavy roll blank which are poured by a centrifuge imported from Germany, processed by Grosper independently, and has passed a strict dynamic balance test. The chill of the roller is made by Ni Cr Mo alloy,and the chill depth is 35+/-5mm.
5: The hydraulic system adopts intermittent hydraulic pump station with PLC, which is highly efficient and energy-saving.
6: The thickness of the flakes can be adjusted without stopping the machine. This is our invention patent.
7: The modular design structure reduces the technical difficulty of equipment maintenance and roll replacement. It allows customers to complete the replacement of parts by themselves in a short time.
Product Paramenters

Item	Unit	Parameter
Model	-	FC6125F
Trade Mark		Grosper
Capacity	T/H	5
Raw material		Corn/Barely
Roller size	MM	600*1250
Chill depth	MM	35+/-5
Chill hardness	HS	75+/-3
Flake thickness (adjustable)	MM	1.0-2.0
Roller speed	RMP	365
Total motor power	KW	63.3
Drive motor power	KW	30*2
Reducer power	KW	1.1
Approach weight	TON	7.5
Overall dimension(length× width× height)	MM	2300*2100*1650mm
