Basic Customization WMT CNC hot sale CNC Lathe Machine CNC210 with China Direct Lower Price
| US$4,300.00-5,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CNC210 with China brand AFTER system
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02mm
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Machine
CNC Lathe
Distance Betweeen Centers
400mm
Spindle Bore
26mm
Max. Swing Over Bed
210mm
Toolpost
4 position Electrical Toolpost
Motor
Servo motor
Clour
grey color
Voltage
Customer Appoint
Payment
T/T, LC, West Union
Transport Package
Poly-Wood Case
Specification
CE, SGS
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
845899000
Production Capacity
100 Sets Monthly
Packaging & Delivery
Package Size
117.00cm * 70.00cm * 86.00cm
Package Gross Weight
230.000kg
Product Description

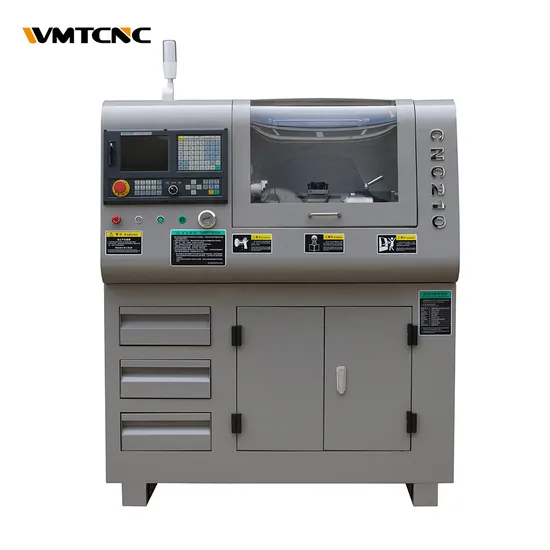

WMT CNC HOT SALES Mini CNC Lathe CNC210 FEATURES:1.The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.
2.Servo spindle motor and X/Z axis feeding motor is servo motor.
3.Small occuping,lower energy consumption,easy operation,suitable for small processing
4.High-quality spindle by high-precision grinding and support by Angular contact bearing
5.Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine
6.Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.
Main Techinical data Model CNC210 CNC lathe
| Specification | CNC210 |
| Capacity | |
| Max. swing over bed | 210mm |
| Distance between centers | 400mm |
| Rail width | 100mm |
| Spindle | |
| Spindle bore dia. | 26mm |
| Spindle taper | MT4/5C(Optional) |
| Spindle speed | 3000rpm |
| No. of tool stations | 4-position |
| Axis | |
| X-axis travel | 105mm |
| Z-axis travel | 270mm |
| X rapid speed | 3000mm/min |
| Z rapid speed | 3000mm/min |
| Motor | |
| Spindle motor power | 1.2kw |
| Main motor type | Srevo motor |
| Controller system | After 990TDB |
| X motor torque | 2.4N.m |
| Z motor torque | 2.4N.m |
| Min. setting unit | 0.001mm |
| Turret | |
| Type | Electric type |
| No. of tool stations | 4 position |
| Max. section of tool | 12x12mm |
| Tailstock | |
| Tailstock dia. | 22mm |
| Tailstock tavel | 50mm |
| Tailstock taper | MT2 |
| Machine Dimensions | |
| Packing size(without stand) | 1170X700X860mm |
| Overall size | 1300X800X1500mm |
| N.W(without stand) | 200kg |
| N.W | 230kg |
