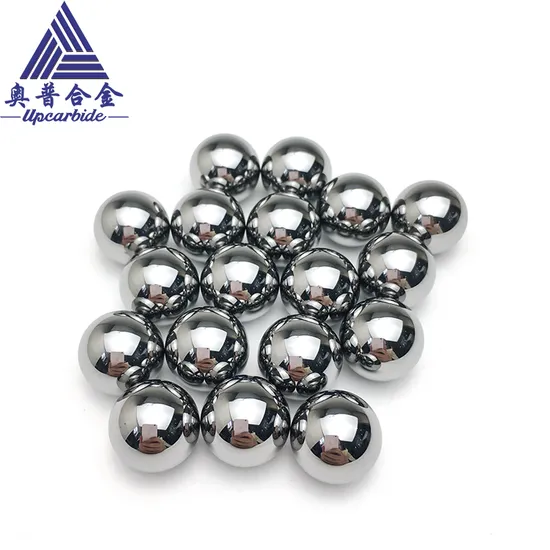

K10 Diameter Polished Carbide Round Balls

Product Description

Specifications
the unground ball is suitable for milling all kinds materials;
the grinding and polishing ball is suitble for precision punching member stretched, precision bearings,instruments,meters,Pen, spraying machines,pumps,machinery parts,valve seals,brake pump,squeeze-hole punch, oil,hydrochloric acid laboratory,hardness measuring instrument,fishing gear,with heavy,ornamented,finished,the high-end industry!
1. Diameter: 15.15mm
2. Grade: YG6,6% CO
3. Hardness: 90.5HRa
4. polished G10.
6. Product customize sizes and shape.
Products Show

Grades for choosing

Grade	Density (g/cm3)	Hardness (HRA)	T.R.S (MPa)	Grain size (μm)	Compositions (%)
YG10X	14.6	91.8	3000	0.6~0.8	10% CO 90% WC
YG6X	14.85	92.0	1860	0.8~1.0	6% CO 94% WC
YG8	14.80	89.5	2320	1.2~2.0	8% CO 92% WC
YG6	14.85	90.0	2150	1.2~2.0	6% CO 94% WC
YN6	14.0	90.0	1400	1.2~2.0	6% CO 92% WC 2% Ni

Sizes for choosing

common sintered balls diameters (mm)
0.4	0.5	0.8	1.0	2.0	3.0	4.0	5.0
6.0	7.0	8.0	9.0	10.0	11.0	12.0	13.0
14.0	15.0	16.0	17.0	18.0	19.0	20.0	21.0
22.0	23.0	24.0	25.0	26.0	27.0	28.0	29.0
30.0	31.0	32.0	35.0	36.0	37.0	38.0	39.0
40.0	41.0	42.826	45.0	50.0	52.0	55.0	60.0
62.0	65.0	70.0	75.0	80.0	90.0
we have more than 100 kinds of diameter for your choose,other diameters pls chat with sellers.

Accuracy grade and tolerance standard
Ball series
Packing & Delivery

Shipping ways
Production process

Company details
