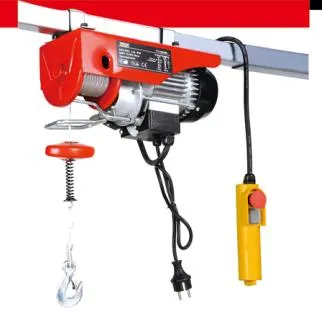

Mini Cable Hoist, 500kg 220V Wire Rope Hoist
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
PA
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform
Type
Electric Hoist
Sling Type
Wire Rope
Lift Speed
>8m/min
Maximum Lifting Height
3m
Chain Falls
1
Certification
ISO9001: 2000, CE
Condition
New
Color
Blue
Model
PA
Capacity(Kg)
100
Lifting Speed(M/Min)
10
Motor Power(W)
480
Power Supply
3-Phase/380V 50Hz
Control Voltage(V)
24V
Insulation Grade
F
Power Source
Electric
Transport Package
Plywood Case
Specification
CE
Trademark
SHUANG GE
Origin
China
HS Code
8425110000
Production Capacity
10000 PCS
Product Description
Features:1.Compact and high efficient motor with heat protection device
2.Use Copper motor,big power and different voltage are available
3.Push button 24V low voltage to guarantee safety and limit switch system
4.Sensitive break system .Friction disk without asbestos
5.Choose precise process of high tensile helix gear working system to keep lower noise.
6.IP54 protection grade on electric hoist for prevent water and dust.
7.Fire stopper:Adjustable mechanical memory structure,high sensitivity
8.Weight limiting stopper:preventing hook clashing the top, sensitive reaction. Safe and durable, easy to install and debug
9.Overload limiter:Preset related data according working condition,show accurate weight;value clearly .Modular,low power design
| Model | Method of use | Rated Voltage(V) | Input Power (W) | Rated capacity (kg) | Lifting speed (m) | Lifting Height(m) | Qty/CTN(pcs) | Packing size (mm) | G.W/N.W (kg) |
| PA200B | Single-hook | AC220/ 230V 50/60HZ | 480 | 100 | 10 | 12 | 2 | 38*32*25 | 22.5/22 |
| Double-hook | 200 | 5 | 6 | ||||||
| PA250B | Single-hook | 510 | 125 | 10 | 12 | 23/22 | |||
| Double-hook | 250 | 5 | 6 | ||||||
| PA300B | Single-hook | 600 | 150 | 10 | 12 | 23.5/23 | |||
| Double-hook | 300 | 5 | 6 | ||||||
| PA400B | Single-hook | 950 | 200 | 10 | 12 | 45*34*27 | 33/32 | ||
| Double-hook | 400 | 5 | 6 | ||||||
| PA500B | Single-hook | 1020 | 250 | 10 | 12 | 33.5/32.5 | |||
| Double-hook | 500 | 5 | 6 | ||||||
| PA600B | Single-hook | 1200 | 300 | 10 | 12 | 35/34 | |||
| Double-hook | 600 | 5 | 6 | ||||||
| PA800B | Single-hook | 1300 | 400 | 8 | 12 | 38/37 | |||
| Double-hook | 800 | 4 | 6 | ||||||
| PA1000B | Single-hook | 1600 | 500 | 8 | 12 | 1 | 54*25*32 | 32/31 | |
| Double-hook | 1000 | 4 | 6 |
FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
