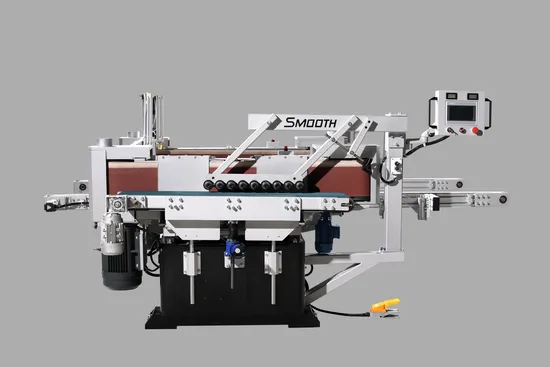

Air Drum Sander for Woodworking with Dual-Side Sanding Features

Product Description

3 IN 1 Drawer Cabinet Oscillating Sander - Premium Wood Sanding Machine for Professional Woodworking
Manual sanding can be time-consuming and inefficient. The double-end sanding machine from Valentina Exim Co., Ltd is meticulously engineered to revolutionize your workflow, making the sanding process quicker and more effective.
Designed specifically for drawers, cabinets, and panels, this groundbreaking machine executes dual-end calibration and polishing simultaneously. This innovation significantly boosts productivity while slashing labor costs.
An indispensable asset for any modern furniture factory, this machine guarantees superior finish quality and operational efficiency, elevating your production processes to new heights.
Product Parameters

MODEL	S350	S230
Working Thickness	5-350mm	5-230mm
Working Width	400-1200mm	400-1200mm
Abrasive Belt Size	370*3780mm	250*3780mm
Main Motor	11Kw*2	7.5Kw*2
Machine Dimension	2700*2240*1720mm	2700*2240*1620mm
Weight	1500Kgs	1450Kgs
Automatic Sanding (Drawer/box sanding)	√	√
Extra work station 1 (For edge sanding auto feeding)	√	√
Extra work station 2 (For manual sanding with Bevel adjustment sanding)	√	√
Dust Port (100mm*4)	√	√
Belt Jet Blower	√	√
Servo controlled sanding	√	√
Servo controlled feeding	√	√
HMI	√	√
Locator	Optional	Optional
Various Sanding Speed	Optional	Optional

Working Principle
1. Features an oscillating sanding mechanism that ensures uniform surface treatment across all workpieces.
2. Expertly tailored for double-end sanding and polishing, making it the perfect choice for drawers and cabinets.
3. Boasts a versatile 2-in-1 design, complete with an extra side table ideally suited for sanding small components.
4. Incorporates advanced servo feeding technology for effortless in-and-out material handling.
Application

Detailed Photos

Extra Work Station 1
Extra Work Station 1 is an edge sander for workpieces. It utilizes the main machine's sanding belt, optimizing cost and energy. A pinching roller facilitates automatic feeding, ensuring safe sanding.


Extra Work Station 2
Extra Work Station 2 shares the right sanding belt of the main machine, allowing for manual sanding both vertically and at a bevel.

Safety Protection
When operating the sanding machine, using personal protective equipment (PPE) is crucial. Sanding may release fine particles and hazardous chemicals, particularly from old finishes. Prioritize comprehensive protection for your eyes, ears, lungs, and skin with suitable PPE:
Eyewear: Safety goggles offer a dust-tight seal; however, glasses or face shields also provide effective protection. Hearing protection: Exposure to high noise levels can result in hearing damage, often occurring at levels lower than one might expect. Many power tools surpass safe sound thresholds. Employ earmuffs or earplugs to safeguard your hearing during sanding operations. Respiratory protection: For minor wood sanding, a dust mask might suffice. However, for larger quantities of dust or chemical exposure from paints, stains, or varnishes, a respirator is essential. Select filters based on the chemicals present: particulate-level protection for sawdust, and specific filters for organic vapors such as paint thinner, lacquer, or epoxy-based resin. Gloves: Simple gloves shield your skin from harsh chemicals and abrasions. Even non-toxic paints and stains can irritate the skin, and airborne dust might cause dryness. Wear gloves to ensure your hands remain protected.
