MD215A Internal and End Face Grinding Machine Tool
| US$18,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MD215A
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Internal & End Face Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Roundness of Internal Hole
3um
Cylindricity of Internal Hole
3um
Surface Roughness of Internal Hole
Ra0.63um
Weight of Machine Tool
1220kg
Grinding Diameter Scope
5-50mm
Max. Grinding Depth
80mm
Total Power of Machine Tool
6.14kw
Transport Package

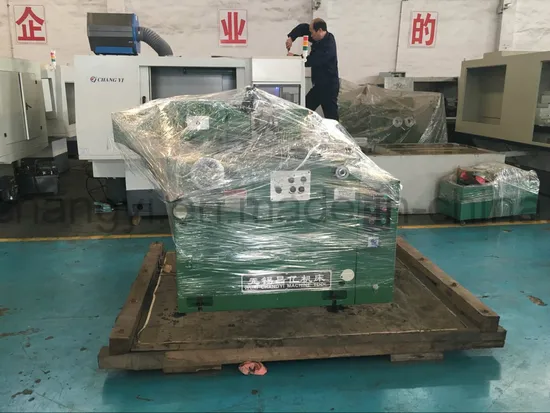

Waterproof Film Wrapped, Wooden Case Packaged
Specification
1580x1450x1560mm
Trademark
changyi
Origin
Wuxi, China
HS Code
8460292
Production Capacity
20 Sets Per Year
Product Description
* MD215A Internal and end face grinding machine tool
* This machine tool is mainly used for grinding internal hole, stepped hole and internal tapered hole with small diameter.
* The guide rail of machine tool adopts double-V preload high-precision rolling guide rail with good rigidity.
* High-speed high-power electric grinding wheel spindle powered by static frequency converter is adopted, which is of low energy consumption and small noise.
* The feed mechanism adopts triple-roller system which is hydraulically controlled and has high precision.
