P2.604/P2.976 500mm*500mm Aluminum Cabinet Portable Screen Board Electronic Video Panel Stage Background High Refresh LED Advertising Display
| US$100.00-199.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SY-P2.976-28S-I
Pixel Pitch
2.976mm
Pixel Configuration
1R,1G,1B
Pixel Density
112896 Dots/M2
Scanning Mode
1/28 Scan
System Operating Platform
Win98/Win2000/Win XP/Win 7
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP20
Certification
CE, RoHS, CCC, FCC, ISO9001
Control Mode
Synchronous Display with Control PC by DVI
Control System
Novastar, or Linsn, or Colorlight or as Required.
Display Content
Video, Picture, Cartoon, Graphics, Texts.etc.
with Video Processor
Video, VGA, HDMI, DVI, SDI/HD-SDI/3G-SDI
Cabinet Material
Die Casting Aluminum
Cabinet Size
500mm X 500mm
Cabinet Weight
7.0kg Per Cabinet
OEM
Yes
Transport Package
Flight Case
Specification
CE, RoHS, FCC
Trademark
SENY
Origin
Shenzhen, Guangdong, China
HS Code
8528591090
Production Capacity
100000
Packaging & Delivery
Package Size
103.00cm * 57.00cm * 75.00cm
Package Gross Weight
101.000kg
Product Description
P2.604/P2.976 500mm*500mm Aluminum Cabinet Portable Screen Board Electronic Video Panel Stage Background High Refresh LED Advertising DisplayProduct features:
1. Humanized structure design, Thickness of this led display cabinet is only 80mm.
2. Equipped with fast locks, durable and graceful. Easy assembly and dismantling.
3. Speedy heat venting designing ensures steady cooling of the led display cabinets even equipped.
Technical Parameter:
| Item Name | Technical Parameter | ||
| LED Parameter | |||
| Item Name | LED Type | ||
| Red LED | SMD3in1 | ||
| Green LED | SMD3in1 | ||
| Blue LED | SMD3in1 | ||
| Module Parameter | |||
| Pixel Pitch | 2.976mm | ||
| Pixel Configuration | 1R1G1B | ||
| Module Resolution | 84 x 84 pixels | ||
| Module Pixles | 7056 pixels | ||
| Module Size | 250mm x 250mm | ||
| Cabinet Parameter | |||
| Cabinet Size(W X H X D) | 500mm x 500mm x 80mm | ||
| Cabinet Resolution(dot) | 168 x 168 pixels | ||
| Module Quanity (pcs) | 4pcs | ||
| Cabinet Pixels | 28224 pixels | ||
| Pixel Density | 112896 pixels/m2 | ||
| Cabinet Type | Die Casting Aluminum | ||
| Cabinet Weight | 6.5kg per cabinet | ||
| Whole Screen Parameter | |||
| Screen Brightness | 800cd/m2 | ||
| Driving Method | 1/21 scan, constant current | ||
| Min. Viewing Distance | 2.9m | ||
| Max. Power Consumption | ≤ 800W/m2 | ||
| Ave. Power Consumption | ≤ 350W/m2 | ||
| Gray Levels | 14 bit | ||
| Frame Frequency | ≥60Hz | ||
| Refresh Frequency | 3840Hz | ||
| LED Life-span | ≥100,000 hours | ||
| MTBF | ≥5,000 hours | ||
| Discrete Blind Spot Rate | <1/10000 | ||
| Continuous Blind Spot Rate | None | ||
| Blind Spot Rate | <1/10000 | ||
| Protective Scale | IP20 | ||
| Screen Plainness | <±1mm | ||
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||
| Working Temperature | Temperature: 0 Celsius~+40 Celsius | ||
| Storage Temperature | Temperature:-30 Celsius~+50 Celsius | ||
| Humidity | Humidity:10%~90% RH | ||
| Control Mode | Synchronous display with control PC by DVI | ||
| Control System | Novastar, or Linsn, or Colorlight, or as required. | ||
| Display Content | Video, picture, cartoon, graphics, texts.etc. | ||
| Interface | Standard Ethernet | ||
| Transmission Distance | Multi mode fiber <500m, single mode fiber <20km,internet cable <100m | ||
| With Video Processor(optional) | Video,VGA,HDMI,DVI,SDI/HD-SDI/3G-SDI | ||

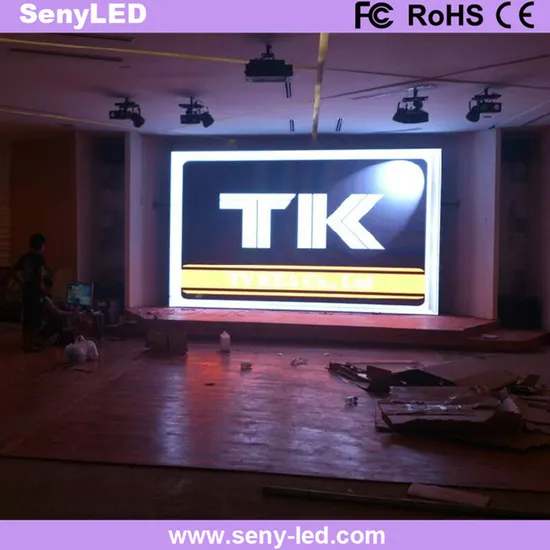

Application Cases:
Connection:
Production Corner:
Certification:
Packaging and Shipping:
Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other required services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 1year
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
