Hicas Woodworking CNC Wood Tenon Groove Machine Mortise Tenon Machine

Product Description

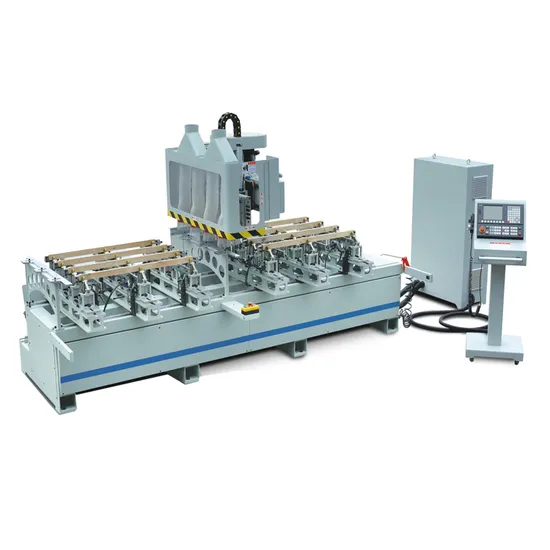

HICAS CNC Wood Tenon Groove Machine Mortise and Tenon Machine Product Description
This machine adopts Numeric control system, double working position.
Professional solution: Make mortise, fit for mass production of making dinning table, chair and other solid wood furniture, etc.
Technical Data

Max mortise width	25mm
Max mortise depth	100mm
X-axis route	2800mm
Y-axis route	170mm
Z-axis route	200mm
Qty. of milling head	4 head
Cutter dia.	Φ12.7mm
Max. speed of milling spindle	18000r/min
Max. moving speed	20m/min
Motor power of milling spindle	3.0×4kw
Motor power for X-axis	1.5kw
Motor power for Y-axis	1kw
Motor power for Z-axis	1kw
Air source pressure	0.4mpa
Suction hood Dia.	Φ120×4mm
Vacuum system air demand	120m3/min
Vacuum system air speed.	30~40m/s
Packing Specification	3600×1640×2100mm
Weight	2200kg

Detailed Photos
1.X, Y, Z has adopts imported linear guide rail, ball screw, precision rack and helical gear. Three spindles linkage. The performance is stable and high precision.
2.X-axis adopts the planet gear speed reducer and the performance is stable and high precision.
3.X, Y, Z axes adopts servo drivers, the Z-axis is with brake which keep the stable performance and high precision.
4.Milling axes adopt the frequency variable motor with 18000r/min 3kw, imported converter. It is good for machining variety workpiece.
5.CNC control system and man-machine interactive are easy and efficient for operation.
Packaging & Shipping
Certifications
Company Profile
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.

2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
