35HP Mini Farm Tractor of Agricultural Machinery Mini Tractor Agricultural Walking Tractor
| US$5,700.00-6,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1gzl-125
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Certification
CE, CNAS
Color
Red and Black
Warranty
1 Year
Rush Order
Support
Delivery Time
15-60 Days
Gauge
800
Net Weight
1050 Kg
Transport Package
Naked Packing
Specification
1050KG
Trademark
K-BOS
Origin
Deyang City, Sichuan Province
HS Code
8701300090
Production Capacity
3000
Product Description

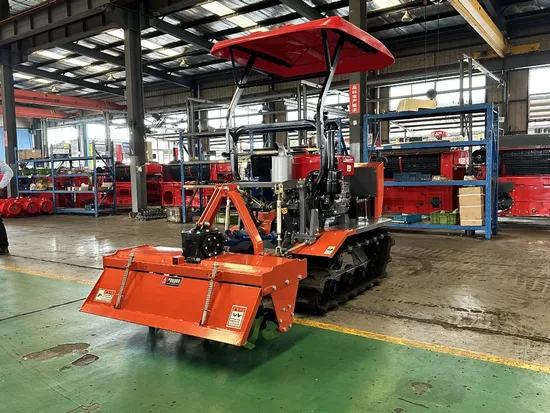

Product Description1GZL-125 CRAWLER TRACTOR/ROTARY CULTINATOR
Crawler walking★ HST one lever operating ★ hydraulic steering lift ★ Ground clearance 285mm,Guage 1000mm,Rubber track width 400★ Three-point Linkage,multi-functional match different farming implements to finish rotary tilling,ridging,furrowing works etc,★asy operation,low ground pressure, high efficiency.
------------------------------
SPECIFICATION
| Product Model | 1GZL-125 CRAWLER TRACTOR | |||||
| Overall Dimension Length×Width×Heights(mm) | 2900×1320×1450 | |||||
| Weight (kg) | 1050 | |||||
| Productivity of Operating Hours(hm²/h) | 0.25~0.35 | |||||
| Engine | Model | AM35NM | ||||
| Rated Power(kw/hp) | 24KW/35HP | |||||
| Engine Type | Water-Cooled,Single-Cylinder,Diesel Engine. | |||||
| Rated Rotation Speed (r/min) | 2200 | |||||
| Traveling System | Type of Gearbox | Mechanical Manual | ||||
| Rubber Track(mm) | 350x90x38 | |||||
| Gauge | 800 | |||||
| Minimum Ground Clearance (mm) | 295 | |||||
| Hydraulic Hitch System | Hydraulic Hitch Type | Semi-partition Hydraulic Hitch | ||||
| Rear Mounted Implements Type | Three-point Linkage | |||||
| Implements catogry | Categories 2 | |||||
| PTO Rotating Speed (r/min) | 580 | |||||
| Working Implement Rotary Tiller | Working Width(mm) | 1250 | ||||
| Type of Knife | IT195 | |||||
| Quantity of Knife | 28 | |||||
| Driving Type | Side Gear Driving | |||||
-------------------------------
