One out Four Fully Automatic Blow Molding Machine Fully Automatic Hollow Machine

Product Description

-------Product Description------

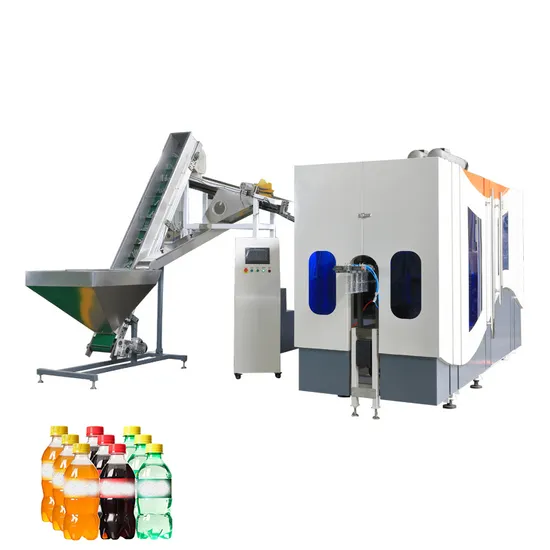

Automatic 4 Cavities Blowing Machine
Application:
The machine is suitable for making 0.1L-1.5L PET water/beverage/pesticide/cosmetic bottles etc in 4 cavities.
Features:
1. Adopt advanced components such as Mitsubish PLC electric parts LP solenoids/Parker HP valve solenoids/Omron sensors/Airtac cylinders etc.
2. Adopt transfer servo motor(Mitsubish)to ensure stable performance
3. Automatic lubricating system
4. Automatic robot hand for bottle taking-out
5. Strong infrared heating lamps
6. Advanced steel mould plate clamping system
7. Accurate heating tunnel system

------Product Paramenters-------

ltem	Measurement	Model
		TH-A4
Material		PET
Theoratical output	Pcs/hr	4000BPH(500mI)
Max bottle diameter	mm	115
Max bottle height	mm	320
Bottle neck size	mm	18-38
Max opening stroke	mm	125
Bottom stroke	mm	30-70
Central distance	mm	110
Heating power	KW	60
Working pressure	Mpa	0.8-1.0
Blowing pressure	Mpa	3.0
Machine size	mm	3200*2100*2000mm
Conveyor size	mm	1700*1300*2700mm
Machine+conveyor weight	KG	2850KG+350KG
Voltage		3P 220V/380V 50-60HZ

------Production Plant------
------Company Profile------

Taizhou Pai Rui Packaging Machinery Co., Ltd. is a leading supplier to provide the plastic machine, packaging machine and plastic products. The company was originally founded in Taizhou with convenient access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Nowadays, we have rich experience with a world-class design team, a network of high-quality manufacturers and a team dedicated to professional services.
Our products are able to support any part of the plastic producing cycle. We provide professional machines, including blowing machine, injection molding machine, and packing machine etc. The associated company's factories also supply customized plastic products with good quality and lower price. We also provide various of plastic labels as customers' requirement. Recently, the company started international business and has established a very stable and positive win-win partnership with our customers.
------Certifications------

-----Product packaging-----
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
------Our Partner------

The blowing process of the bottle blowing machine main steps:
1. Bottle blowing system to make PET plastic bottles ( Semi automatic / Fully automatic )
2. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. 3 in 1 monoblock Rinser-filler-capper machine
5. Labeling machine(PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. End packaging ( PE film shrink wrapping machine / Carton packing machine )
Semi- automatic bottle blowing machine
We are professional bottle design, we can quickly design the bottle according to your bottle sample, or improve from your sample. Suitable for producing PET plastic containers and bottles. Widely used in the production of carbonated bottles, mineral water, carbonated beverage bottles, pesticide bottles, oil bottles, cosmetics, wide-mouth bottles, etc.
We use durable mould material, top hardness, good cooling opportunity design to make bottle good cooling and good blowing.
------FAQ------
Q1 :What kinds of product you supply?
A1: Sticker Labeling Machine,Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry?
A2: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
