2022 New Design Portable H2s Gas Detector H1600 for Personal Safety
| US$40.00-70.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
H1600
Certification
CE, RoHS
Application
Indoor, Outdoor
Working Principle
Electromechanical
Transmission Mode
Cable
Alarm Volume (within 1m)
≥90dB
Receive Frequency
N/a
Ingress Protection
IP66
Power Source
Rechargeable Lithium Battery
Alarm Method
Sound, Vibration, Light
Sampling Method
Diffusion Type
Display
LCD
Warranty
1 Year
Sensor Life
3~5 Years for Catalytic Combustion, 2~3years for E
Explosion-Proof Grade
Ex Ia II CT4 GB
Detection Principle
Electrochemical & Catalytic Combustion & Pid
Transport Package
Carton
Specification
63W x 64H x 43D mm
Trademark
AE
Origin
Nanjing, China
HS Code
8531100000
Production Capacity
10000/Month
Product Description

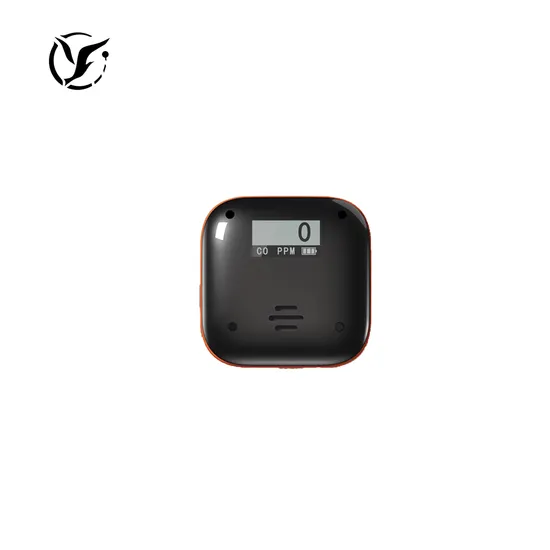

2022 new design Portable H2S Gas Detector H1600 for personal safetyIntroduction
H1600 portable gas detector can detect toxic gases such as oxygen, chlorine, ammonia, carbon monoxide in the environment. This gas detector is a one of the world smallest detectors (63W x 64H x 43D mm). Based on the advanced intrinsically safe 'ia' design, and the IP66 ingress protection, H1600 can keep you safer in the harsh environments. By supporting latest type-C USB technology, the alarm record can be easily upload.
Features Rechargeable lithium battery, the battery can work for half a month PC+ABS housing and silicone protective cover, excellent anti-drop performance. With sound, light, vibration alarm High-performance electrochemical sensor with sensitive response Small and lightweight, one-button operation, much easy to go Intrinsically safe 'ia' design, IP66 ingress protection Compatible with sampling pump for confined space usage
Specifications
| Description | H1600 |
| Function | |
| gas detected | toxic gas,O2 |
| measure range | see QUICK-SELECTION-TABLE |
| response time* | T90≤30/60/180S |
| accuracy* | ≤±5%FS |
| repeatability* | ≤2%FS |
| sampling method | diffusion |
| Electric | |
| battery | rechargeable Li-battery 750mAh,nominal voltage 3.7V |
| continuous operation | around 14 days |
| charging time | 3-5h |
| Alarm | |
| alarm method | sound,LED light,vibration |
| sound intensity | ≥90dB |
| Display and Operation | |
| display | LCD |
| button | 1(POWER) |
| Environment | |
| ingress protection | IP66 |
| operating temperature* | -20ºC~60ºC |
| operating humidity | 10~95%RH non-condensing |
| operating pressure | 80-120kPa |
| Structure | |
| body material | PC+ABS |
| weight | about 110g |
| dimensions | 63W x 64H x 43D mm |
| Certificates | |
| EX | Ex ia II CT4 Gb |
QUICK SELECTION TABLE -- GAS DETECTED
| NO. | Gas | Measure range | Resolution |
| 1 | O2 | 0-25%VOL | 0.1%VOL |
| 2 | CO | 0-1000ppm | 1ppm |
| 3 | H2S | 0-100ppm | 1ppm |
| 4 | SO2 | 0-20ppm | 0.1ppm |
| 5 | H2 | 0-1000ppm | 1ppm |
| 6 | CL2 | 0-10ppm | 0.1ppm |
| 7 | NH3 | 0-100ppm | 1ppm |
| 8 | HCL | 0-30ppm | 0.1ppm |
| 9 | NO | 0-250ppm | 1ppm |
| 10 | NO2 | 0-20ppm | 0.1ppm |
| 11 | ETO | 0-20ppm | 0.1ppm |
