Mini Manual Metal Milling and Drilling Machine Wmd16V Wmd25V Wmd25LV
| US$700.00-800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WMD16V WMD25V WMD25LV
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
25mm
Taper
Mt3
Motor
1.5kw
Spindle Travel
50mm
Table Size
500X180mm
Transport Package
Plywood Case
Specification
125kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description
SPECIFICATIONS
| WEISS MODEL | WMD16V(A) |
| Item No. | 10202160/10202161 |
| Max. drilling capacity | 16mm |
| Max. end milling capacity | 16mm |
| Max. face milling capacity | 50mm |
| Table size | 400x120mm |
| Table travel (X,Y) | 240x150/220x160mm |
| T-slot | 3x10mm |
| Spindle taper | MT2 |
| Spindle stroke | 50mm |
| Step of spindle speeds | Variable |
| Range of spindle speeds | 20-2250rpm |
| Spindle incline angle | ±90° |
| Distance from spindle to column | 188mm |
| Distance from spindle nose to table | 210mm |
| Motor | 500W |
| Machine size | 510x480x750mm |
| Packing size | 510x530x840mm |
| Net weight | 60KG |
Standard Accessories
| Drill chuck 3-16/ B16 |
| Drawbar |
| Arbor MT2/B16-M10 |
| Digital Depth Ruler |
| Spindle Cover with Micro Switch |
| Toolbox and tools |
Optional Accessories
| Tapping Function |
| Keyless Drill Chuck 3-16mm |
| ER 25 Collet Chucks MT2-ER25(6pecs) |
| Vice BMS80 |
| HSS 19 pcs Drill sets |
| End Mill Sets 7pcs 4-16mm |
| 3-Axis DRO(Magnetic Scales) |
| 58pcs clamping kits M18 |
| Oil Tray |
| Stand |
| Luxury Stand |

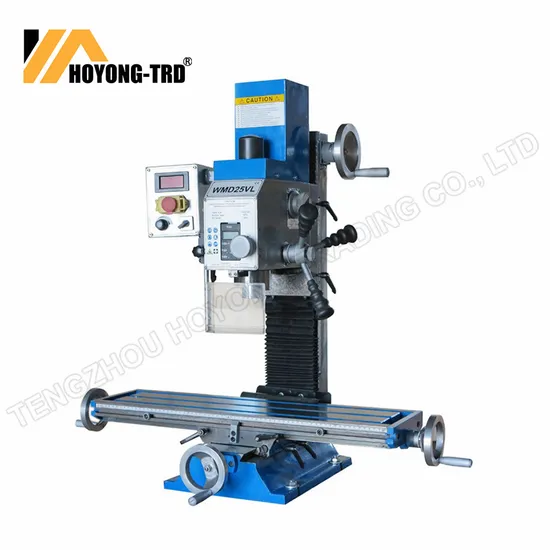

VERTICAL DRILL MILL MACHINE WMD25V
1, medical equipment, automatic control equipment, electrical appliances sound equipment, security monitoring equipment;
2, heater, atomizer, outdoor lighting project;
3, broadcasting system, the solar wind, electronic communications, etc.
SPECIFICATIONS:
| SPECIFICATION | WMD25V | WMD25LV |
| Max.drilling capacity | 25mm | 25mm |
| Max.tapping capacity | 16mm | 16mm |
| Max.face milling capacity | 63mm | 63mm |
| Table size | 500X180mm | 700X180mm |
| Spindle taper | MT3/R8 | MT3/R8 |
| Spindle stroke | 50mm | 50mm |
| T Slot size | 12mm | 12mm |
| Spidle speed | Variable | Variable |
| Range of spindle speed | 20-2250mm | 20-2250mm |
| Spindle incline angle | 90° | 90° |
| Distance from spindle to column | 201mm | 201mm |
| Distance from spindle nose to table | 280mm | 280mm |
| Motor | 700W | 700W |
| Packing size | 670X550X860 | 870X550X860 |
| Weight | 120/125kgs | 120/125kgs |
