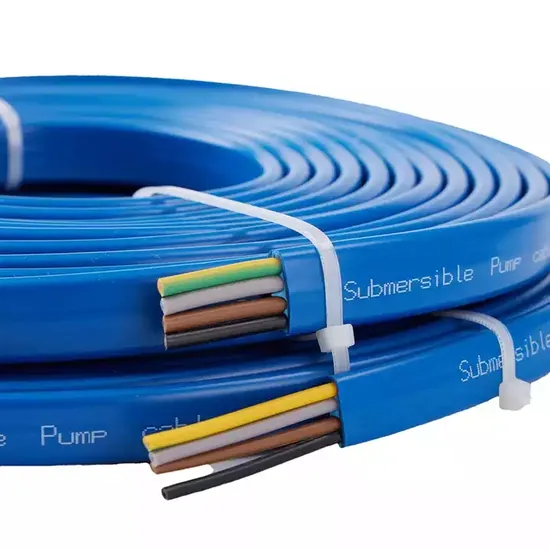

Heavy-Duty Rubber Sheathing 3X1.5mm 3X2.5mm 3X4mm Waterproof Submersible Pump Power Cable
| US$0.10-3.00 | 5,000 Meters (MOQ) |
Basic Info.
Model NO.
Submersible Pump Cable
Current
DC Cable
Insulation Material
PVC
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC, CE
Model
Submersive Pump Cable
Brand
Qinshan
OEM/ODM
Available
Length
as You Need
Sample
Free
Genre
Low Voltage, Round or Flat
Transport Package
Customize
Specification
Customize
Trademark
QINSHAN
Origin
China
HS Code
8544492900
Production Capacity
6000000meters/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description
Heavy-Duty Rubber Sheathing 3x1.5mm 3x2.5mm 3x4mm Waterproof Submersible Pump Power Cable1.Production Description:
*APPLICATION
Used to connect electrical circuits of underground pump rated at 600 volts maximum circuit voltage rating and 75ºC maximum conductor thermal rating.
* CONDUCTOR
Three soft drawn bunched/ropelay copper conductors. Available sizes are listed on the next page.
* INSULATION Individual conductor is color-coded extruded with Polyvinyl Chloride (PVC) Lead Free. This Thermoplastic is flame retardant and resistant to heat, moisture and oil.
* JACKETAssembled multi-conductor cable is extruded with Polyvinyl Chloride (PVC) Lead Free and then with Black Polyethylene (PE) for final protective covering.
2.Product Parameter:
| SIZE OF CONDUCTOR | No.&Nominal Diameter of Wire | PVC Insulation Thickness | PE Insulation Thickness | Approximate overall diameter | nominal weight | |
| MM | Approximate AWG | MM | MM | MM | KG/KM | |
| 0.75MM2 | 18 | 30X0.18MM | 1.2 | 1.6 | 12.36 | 161.83 |
| 1.25MM2 | 16 | 50X0.18MM | 1.2 | 1.6 | 13.22 | 195.21 |
| 2.00MM2 | 14 | 37X0.26MM | 1.2 | 1.6 | 13.87 | 229.28 |
| 3.5MM2 | 12 | 45X0.32MM | 1.2 | 1.6 | 15.38 | 311.28 |
| 5.5MM2 | 10 | 70X0.32MM | 1.2 | 1.6 | 16.68 | 399.55 |
| 8.0MM2 | 8 | 7X14X0.32MM | 1.6 | 2.0 | 22.18 | 603.97 |
| 14MM2 | 6 | 7X25X0.32MM | 1.6 | 2.0 | 25.21 | 865.69 |
| 22MM2 | 4 | 7X39X0.32MM | 1.6 | 2.0 | 28.23 | 1179.65 |
| 30MM2 | 2 | 7X53X0.32MM | 1.6 | 2.0 | 30.61 | 1477.37 |
| 38MM2 | 1 | 19X25X0.32MM | 2.0 | 2.0 | 34.50 | 1899.96 |
| 50MM2 | 1/0 | 19X33X0.32MM | 2.0 | 2.0 | 37.30 | 2352.93 |
| 60MM2 | 2/0 | 19X39X0.32MM | 2.0 | 2.0 | 39.9 | 2713.35 |
| 80MM2 | 3/0 | 19X53X0.32MM | 2.0 | 2.8 | 45.17 | 3574.58 |
| 100MM2 | 4/0 | 37X34X0.32MM | 2.0 | 2.8 | 49.27 | 4330.96 |
| 125MM2 | 250MCM | 37X42X0.32MM | 2.4 | 2.8 | 54.46 | 5336.55 |
| 150MM2 | 300MCM | 37X51X0.32MM | 2.4 | 2.8 | 57.7 | 6266.27 |
| 200MM2 | 400MCM | 61X41X0.32MM | 2.4 | 2.8 | 63.96 | 8008.22 |
| 250MM2 | 500MCM | 61X51X0.32MM | 2.4 | 3.6 | 70.96 | 9874.79 |
3.Product Details:
About US
Zhejiang Qinshan Cable Co., Ltd, builted in 1983, locates in the birthplace of China's Nuclear Power Station--Qinshan Town, covering 26,000 squares meters. With registered capital of 16 million US dollars, Zhejiang Qinshan Cable Co., Ltd has its own registered trademark of "Qinshan" and dozens of inventions. Honored as one of the provincial high-tech private enterprise, qualified supplier of China Nation Nuclear Corporation and the State Grid Corporation, R&D center of environmental aerospace materials, Jiaxing municipal demonstration creditable company, AAA grade of creditable company and creditable private enterprise
