Four Axis-Usefully Vertical Machining Center Vmc640

Four Axis-Usefully Vertical Machining Center Vmc640

US$24,650.00-58,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC640
Type
Meter Milling Machine
Object
Tool
Structure
Dedicated
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
SGS
Condition
New
Transport Package
Wooden Box
Specification
2300x2250x2450mm
Trademark
LiSN
Origin
China

Packaging & Delivery

Package Size
2300.00cm * 2250.00cm * 2450.00cm
Package Gross Weight
3400.000kg

Product Description

Product Description

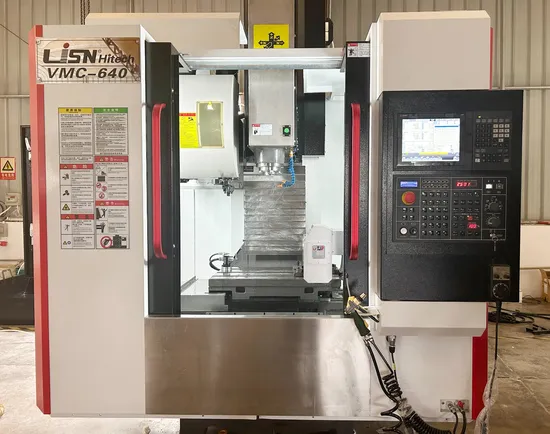

The High Precision CNC Vertical Machining Center for Automotive VMC640 is a versatile and reliable machine designed for precision machining in the automotive industry. It features a 3-axis configuration and offers a wide range of capabilities.
Detailed Photos
Axis: The machine has a 3-axis configuration, allowing for precise movement along the X, Y, and Z axes. Feedrate: The feedrate can be adjusted from 1 to 10,000mm/min, providing flexibility in machining operations. Max Tool Diameter: The maximum tool diameter supported by the machine is 80/125mm. Max Tool Length: The machine can accommodate tools with a maximum length of 300mm. Max Tool Weight: The maximum weight of the tool that can be used is 7kg. Spindle Motor: The machine is equipped with a powerful spindle motor with a rating of 7.5kw. Spindle Speed: The spindle speed can reach up to12000rpm, allowing for high-speed machining. Spindle Taper: The machine uses the BT40 spindle taper. Table Size: The table has a size of 1200 x 600mm, providing ample space for workpieces. Tool Magazine Capacity: The machine has a tool magazine with a capacity of 24/32 tools. Travels: The machine has a travel range of X: 650mm, Y: 430mm, Z: 450mm.
Company Profile
FAQ
1. Is it all right to make customer's own brand name?A: yes. we are available with OEM2. Are you a manufactuer or trading company?A:We are the manufacturer3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available.4 . What is your terms of delivery?A: FOB shenzhen.5. What's your payment term?A: T/T OR L/C at sight.
